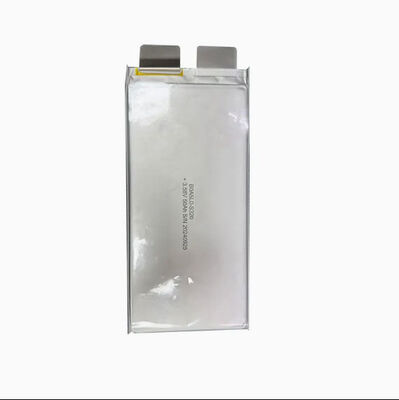

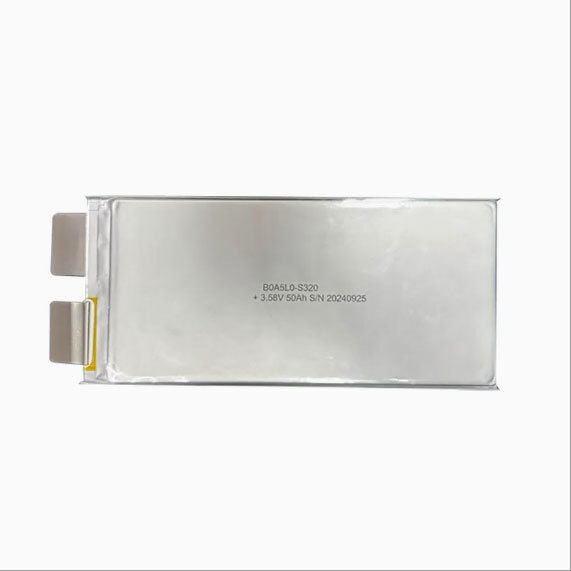

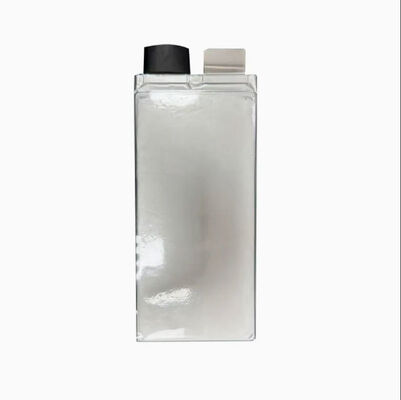

High Density Semi Solid Lithium Ion Battery 50AH 3.6V Solid State Battery
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Packaging Details: | Industrial Pakcage |
| Delivery Time: | 35 working days |
| Payment Terms: | L/C,T/T,Western Union |
|
Detail Information |
|||
| Name: | Semi Solid Lithium Ion Battery | Normal Capacity: | 50Ah |
|---|---|---|---|
| Normal Voltage: | 3.6V | Dimension: | 11 Mm × 105 Mm × 230 Mm |
| Standard Charge Current: | 0.5C (25 A) | Weight: | 593g |
| Storage Temperature: | -20°C To +35°C | Self-Discharge Rate: | <3% Per Month |
| Cycle Life: | ≥ 1,000 Cycles | ||
| Highlight: | High Density Solid State Lithium Battery,Semi Solid Lithium Ion Battery 50AH,3.6V Solid State Battery |
||
Product Description
High Density Semi-Solid Li-ion Batteries 50ah 3.6V Solid State Battery
Features
- High Energy Density: With an estimated energy density of 304 Wh/kg, this cell is designed for applications requiring long runtime and compact size.
-
Enhanced Safety Profile: The semi-solid electrolyte is less flammable than conventional liquid electrolytes, significantly improving the cell's resistance to leakage, thermal runaway, and fire .
-
Potential for Long Cycle Life: The semi-solid state can help suppress lithium dendrite growth and reduce side reactions at the electrode interfaces, contributing to extended cycle life .
-
Fast Charging Capability: The ionic conductivity of semi-solid electrolytes can be engineered to support faster charging compared to standard Li-ion batteries .
-
Wide Operating Temperature Range: Suitable for use in diverse environmental conditions.
Specification
| Normal Capacity | 50Ah |
| Normal Voltage | 3.6V |
| Charging Voltage | 4.2 V ± 0.05 V |
| Dimension | 11 mm × 105 mm × 230 mm |
| Standard Charge Current | 0.5C (25 A) |
| Fast Charge Current | 1C (50 A) |
| Internal Resistance | ≤ 10 mΩ |
|
Max. Continuous Discharge Current |
1C (50 A) - 3C (150 A) |
| Operation Teerature |
Charge:0°C to +55°C
Discharge:-20°C to +60°C |
| Weight | 593 g |
| Storage Temperature | -20°C to +35°C |
| Self-Discharge Rate | <3% per month |
Applications
- Light Electric Vehicles : Electric scooters, e-bikes, and small electric cars .
-
Advanced Energy Storage Systems : Home and industrial backup power systems.
-
High-End Portable Power Stations: Providing reliable power for outdoor and emergency use.
-
Specialized Industrial Equipment: Such as robotics, drones, and medical devices.
Warnings & Safety Instructions
Charging
- Use Designated Chargers: Charge only with a charger designed for 3.6V Li-ion batteries using the CC/CV method.
-
Temperature Control: Do not charge outside the specified temperature range (0°C to +55°C). Charging below 0°C can lead to lithium plating; charging above 55°C is hazardous.
-
Voltage/Current Limits: Do not exceed the maximum charge voltage of 4.25V or the maximum charge current.
Discharging
- Voltage Limit: Do not discharge the battery below the cut-off voltage to prevent deep discharge damage.
-
Current Limit: Do not exceed the maximum continuous discharge current.
-
Temperature Monitoring: If the battery becomes excessively hot during use, stop operation and allow it to cool.
Storage
- Ideal Storage Charge: For long-term storage, store the battery at a state of charge between 30% and 50%.
-
Storage Environment: Store in a cool, dry place away from direct sunlight and moisture.
