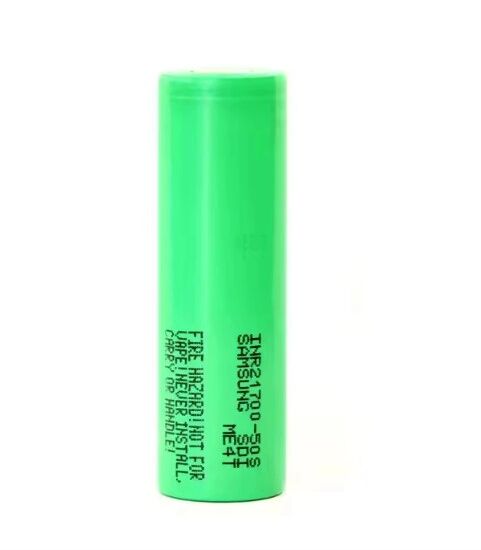

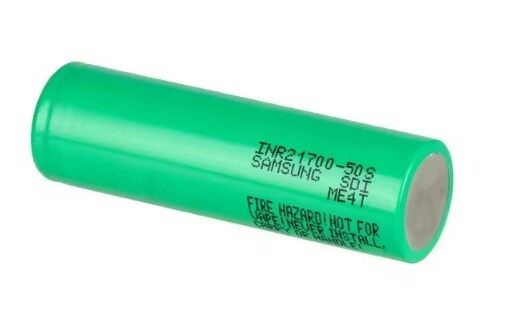

Rechargeable 21700 High Drain Lithium Battery 3.6V 5000mAh Max 45A Discharge
Product Details:
| Place of Origin: | China |
| Brand Name: | SDI |
| Certification: | UN38.3 MSDS CB CE BIS Model Number: inr21700 50s |
| Model Number: | INR21700 50s |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Payment Terms: | L/C,T/T |
|
Detail Information |
|||
| Battery Type: | High Drain Lithium Battery | Voltage: | 3.7V |
|---|---|---|---|

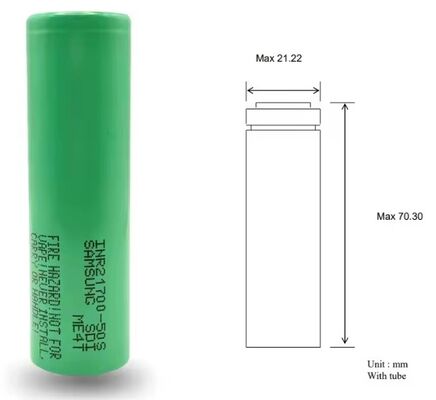

| Dimension: | Diameter :21mm Height :70mm | Capacity: | 5000mah |
| Discharge Rate: | 45A | Quality Guarantee: | 2 Years |
| Weight: | 72g | Charging Time: | 150 Min |
| Highlight: | 21700 High Drain Lithium Battery,21700 Rechargeable Battery 5000mAh,21700 Lithium Battery 3.6V |
||
Product Description
21700 High Drain Lithium Battery 3.6V 5000mAh Max 45A Discharge
Features
- High-Rate Discharge Capability: Designed to deliver high continuous discharge currents up to 45A .
- High Energy Density: Offers a balance of good capacity (5000mAh) and high power output in the standard 21700 form factor, providing long runtime.
-
Long Cycle Life: Can withstand over 500 charge-discharge cycles while maintaining more than 80% of its initial capacity, ensuring value and longevity.
-
Stable Performance: Features a stable nominal voltage of 3.6V, providing consistent power delivery throughout the discharge cycle.
-
Low Self-Discharge: Maintains its charge for extended periods when not in use, making it reliable for occasional use.
-
No Memory Effect: Can be recharged at any state of charge without suffering from capacity reduction, offering flexible charging schedules.
specification :
|
Nominal Capacity
|
5000mAh (0.2C discharge)
|
|
Minimum Capacity
|
4800mAh (2C discharge)
|
|
Nominal Voltage
|
3.6V
|
|
Internal Impedance
|
≤ 15mΩ
|
|
Weight
|
72g
|
|
End of Charge Voltage
|
4.20± 0.05V
|
|
End of Discharge Voltage
|
2.5V
|
|
Charging Time
|
150 min
|
|
Maximum Charging Current
|
6A
|
|
Maximum Discharging Current
|
25A
Without Temperature Cut
|
|
45A
With 80℃ Temperature Cut
|
|
|
Operating Temperature
|
Charge: 0~45°C
Discharge: -20~60°C
|
|
Cycle Life
|
≥500 cycles
|
|
Storage Temperature For
Shipping Cell |
< 35°C
|
application
- High-Performance Power Tools: Drills, saws, and other cordless tools that demand high current and power.
-
Electric Transportation: E-bikes, e-scooters, electric motorcycles, and golf carts.
-
Portable Power Stations: DIY power banks and portable energy storage capable of high output.
-
High-Luminosity Flashlights: Tactical and search lights requiring robust current flow.
-
Professional Video & Photography Equipment: High-wattage LED lights and camera accessories.
-
Solar Energy Storage Systems,UPS,Industrial Equipment
Warnings & Precautions
- Use a Dedicated Li-ion Charger: Always use a charger specifically designed for lithium-ion batteries
- Charge Within Specifications: Do not charge above the maximum voltage of 4.2V or exceed the maximum charge current
- Temperature Monitoring: Charge only between 0°C to 45°C. Never charge a battery that is below freezing (0°C) or feels hot to the touch.
- Avoid Over-Discharge: Stop using the battery before reaching the cut-off voltage of 2.5V. Over-discharging can cause irreversible internal damage.
- Respect Current Limits: While rated for 45A continuous, sustained operation at maximum load can generate heat and reduce lifespan.
- Temperature Management: Avoid discharging outside the recommended temperature range (-20°C to 60°C).
- Partial Charge Storage: For long-term storage (longer than one month), store the battery at a 30%-50% State of Charge (SOC).
- Cool and Dry Environment: Store in a cool, dry place away from direct sunlight and moisture. Ideal storage temperature is between -20°C to 25°C.
