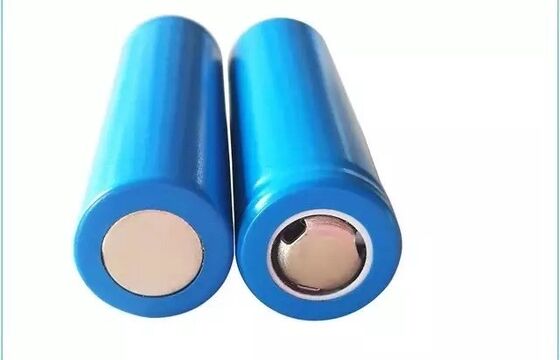

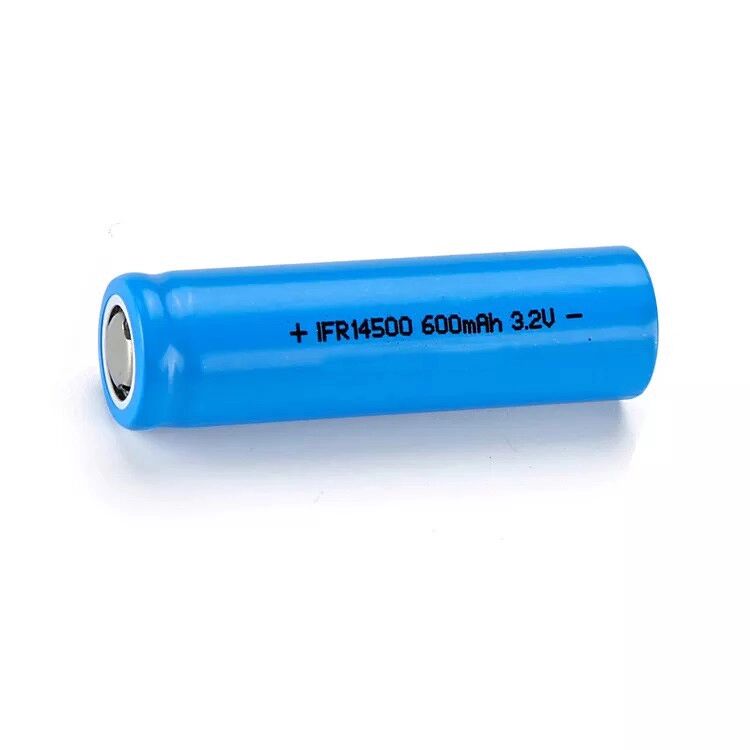

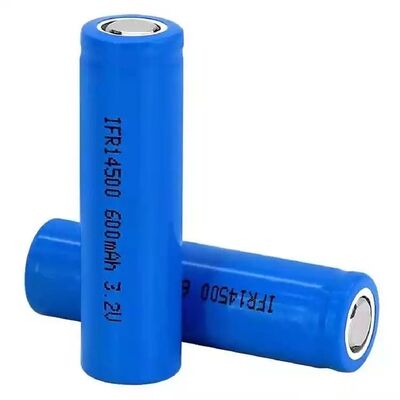

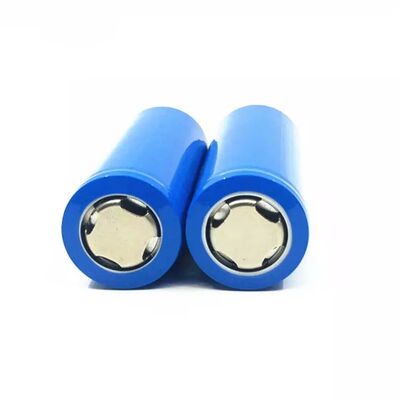

14500 3.2V 600mAh Cell Rechargeable Lithium Lifepo4 Battery For High Powered Flashlights
Product Details:
| Place of Origin: | China |
| Certification: | UN38.3 MSDS CB CE |
| Model Number: | 14500 3.2V 600mah |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Packaging Details: | Industrial Pakcage |
| Delivery Time: | 35 working days |
| Payment Terms: | ,L/C,T/T,Western Union |
|
Detail Information |
|||
| Name: | Lithium LiFePO4 Battery | Battery Type: | Li Iron Phosphate Battery |
|---|---|---|---|
| Voltage: | 3.2V | Capacity: | 600mAh |
| Dimension: | Diamter 14mm Height 50mm | Charging Teerature: | 0~45℃ |
| Discharging Teerature: | -20 ~ 60℃ | Weight: | 22g |
| Cycle Life: | More Than 2000 Cycles | ||
| Highlight: | Lithium Lifepo4 Battery 3.2 V 600mah,14500 Lifepo4 3.2 V 600mah Battery,Lifepo4 3.2 V 600mah 14500 |
||
Product Description
14500 3.2V 600mAh cell Rechargeable Lithium Lifepo4 Battery for High-Powered Flashlights
Features:
1. Light weight, small size and high performance.
2. Stable voltage with higher capacity support fast charge and high rate discharge.
3. Outstanding Discharge properties and Storage Capacity.
4. No memory effect.
5. Small internal resistance.
6. 100% in house quality testing with OQC report.
7. Extra long life design with deep cycle function.
8. MSDS UN38.3 IEC62133 CB support over seas delivery via sea air or door to door courier service.
Specification :
| Product features |
production by automatic production line with high quality materials |
Charging Teerature | 0~45℃ |
| Nominal capacity | 600mAh (0.2C) | Discharging Teerature | -20 ~ 60℃ |
| Nominal voltage | 3.2V | Storage teerature | ≤12 months: -20~25℃ ≤60%RH Recharge every 6 months |
| Max charge voltage | 3.65V | Humidity Range | 0~60% (non-condensing) |
| Discharge cut off voltage | 2.0V | Dimension | 14.5*50.5 (mm)Max |
| Standard charge current | 0.2C | Weight | about 22g |
| Max charge current | 600mAh | Warranty | 12 Months |
| Standard dischrge current | 0.2C | Internal resistance | ≤60 |
| Max dischrge current | 3C | Cycle life | 2000 cycles |
Applications:
-
High-Powered Flashlights and Tactical Lights: Excellent performance and safety under high-drain conditions.
-
Solar Garden Lights and Outdoor Lighting: Long cycle life is ideal for daily charge/discharge cycles.
-
Portable Electronic Devices: Such as digital cameras, toys, GPS devices, and audio equipment designed for similar voltage.
-
Emergency Backup Power: For small devices like sensors or emergency radios.
Charging
-
The recommended charging method is Constant Current (CC) / Constant Voltage (CV).
-
Do not charge the battery above the maximum charging voltage of 3.65V.
-
Never charge a battery that is physically damaged, swollen, or leaking.
Discharging
-
Do not over-discharge. Never discharge the battery below the cut-off voltage of 2.5V. Over-discharging can cause irreversible internal damage.
-
Avoid short-circuiting the battery. A short circuit can cause extremely high currents, leading to overheating, leakage, or explosion.
Handling & Storage
-
Do not disassemble, crush, puncture, or incinerate the battery.
-
Avoid exposing the battery to extreme heat or fire.
-
Keep the battery away from water and moisture.
-
Store the battery in a cool, dry place. For long-term storage (longer than one month), it is ideal to store it with a 40-60% charge level.
