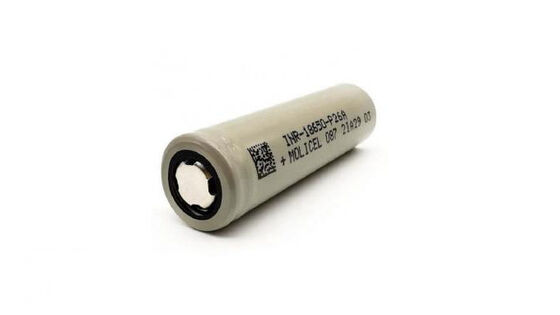

18650 35A High Rate 3.7V 2600mAh Lithium Ion Rechargeable Battery
Product Details:
| Place of Origin: | China |
| Brand Name: | Moli |
| Certification: | CB CE MSDS UN38.3 |
| Model Number: | 18650 2600mAh |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Payment Terms: | L/C,T/T |
|
Detail Information |
|||
| Battery Type: | Rechargeable Lithium Battery | Voltage: | 3.7V |
|---|---|---|---|
| Capacity: | 2600mAh | Weight: | 50g |
| Dimension: | Diamter 18mm Height 65mm | Discharge Current: | 35A |
| Cycle Life: | More Than 1000 Cycles | Guarantee: | 12 Months |
| Highlight: | 2600mah 18650 Battery 3.7V Rechargeable,2600mah 3.7V 18650 Rechargeable Lithium Battery,18650 2600mah Lithium Ion Rechargeable Battery |
||
Product Description
18650 35A high rate 3.7V 2600mAh Lithium Ion Rechargeable battery
Features
-
High-Rate Discharge Capability: Designed to deliver exceptionally high continuous discharge currents up to 35A, making it suitable for demanding applications like power tools and high-performance devices.
-
High Energy Density: Offers a balance of good capacity and high power output in the standard 18650 form factor.
-
Long Cycle Life: Can withstand over 1000 charge-discharge cycles while maintaining more than 80% of its initial capacity, ensuring value and longevity.
-
Stable Performance: Features a stable nominal voltage of 3.7V, providing consistent power delivery throughout the discharge cycle.
-
Low Self-Discharge: Maintains its charge for extended periods when not in use, making it reliable for occasional use.
-
No Memory Effect: Can be recharged at any state of charge without suffering from capacity reduction, offering flexible charging schedules.
Specification
| Normal Capacity | 2600mAh |
| Normal Voltage | 3.7V |
| Charge Voltage | 4.2V |
| Discharge End Voltage | 3.0V |
| Charging Method | CC-CV(Constant voltage with limited current ) |
| Dimension | Diamter 18mm × Height 65mm |
| Internal Resistance | Less than 10 mΩ |
| Standard charge | 4.2A 1.5Hours |
| Rapid Charge | 3C 7800A |
| Continuous discharge current | 35A |
| Battery Protection | No explode no leakage charge discharge short circuit protection |
| Operating Temperature | Charge: 0°C to 45°C; Discharge: -20°C to 60°C |
| Storage Temperature | -20°C to 50°C (Recommended: 20-25°C) |
| Weight | 50g |
| Quality Guarantee | One years |
Applications
- High-Performance Flashlights: Especially high-lumen and tactical models requiring robust current flow.
-
Power Tools: Drills, saws, and other cordless tools that demand high current and power.
-
Vaping Devices (Mods): Mechanical and box mods that operate at high wattages.
-
RC Hobbies and Drones: Power sources for drones and radio-controlled vehicles needing high discharge rates.
-
Electric Transportation: Smaller electric vehicles like e-bikes and scooters.
-
Portable Power Banks (High-Current): For fast charging of mobile devices.
-
Other High-Drain Devices: Various applications requiring reliable high-current output.
Usage precations and safety warnings
- Use a Dedicated Li-ion Charger: Always use a charger specifically designed for lithium-ion batteries with the correct voltage (4.2V) and current limits.
- Charge Within Specifications: Do not charge above the maximum voltage of 4.2V or exceed the maximum charge current.
- Temperature Monitoring: Charge only between 0°C to 45°C. Never charge a battery that is below freezing (0°C) or feels hot to the touch.
- Avoid Over-Discharge: Stop using the battery before the device's cut-off voltage (typically 2.5V - 3.0V). Over-discharging can cause irreversible internal damage.
- Respect Current Limits: While rated for 35A continuous, sustained operation at maximum load can generate heat and reduce lifespan. Avoid exceeding specifications.
- Temperature Management: Avoid discharging outside the recommended temperature range (-20°C to 60°C). Extreme temperatures reduce performance and can be hazardous.
- Prevent Short Circuits: Never allow the positive (+) and negative (-) terminals to connect directly with metal objects. This can cause severe overheating, fire, or explosion.
- Partial Charge Storage: For long-term storage (longer than one month), store the battery at a 30%-50% State of Charge (SOC).
- Cool and Dry Environment: Store in a cool, dry place away from direct sunlight and moisture. Ideal storage temperature is between -20°C to 25°C .
- Isolation: Store batteries separately in non-conductive containers to prevent short circuits and contact with metal objects.
