4500MAH 3.6V Emergency Lighting Battery Eco Friendly Nicd Battery Cells
Product Details:
| Place of Origin: | China |
| Certification: | CE,ROHS, UL,REACH,KS |
| Model Number: | D-D4500mAh |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Packaging Details: | Industrial Pakcage |
| Delivery Time: | 35 working days |
| Payment Terms: | L/C,T/T,Western Union |
|
Detail Information |
|||
| Name: | Emergency Lighting Battery | Voltage: | 1.2V |
|---|---|---|---|
| Capacity: | 4500mAh | Size: | 33.0*61.8mm (D Size) |
| Weight: | 132g | Standard Charge Current: | 0.1C (450mA) For 14-16 Hours |
| Self-Discharge Rate: | 15-20% Per Month (at 20°C) | Internal Resistance: | ≤15mΩ |
| Cycle Life: | 500-1000 Cycles | ||
| Highlight: | 4500MAH Emergency Lighting Battery,3.6V Emergency Lighting Battery,Eco Friendly Nicd Battery Cells |
||
Product Description

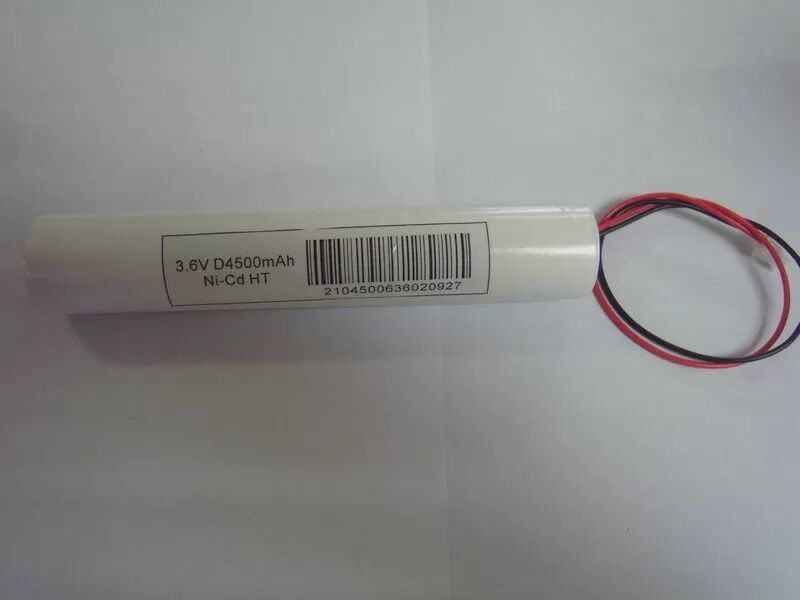

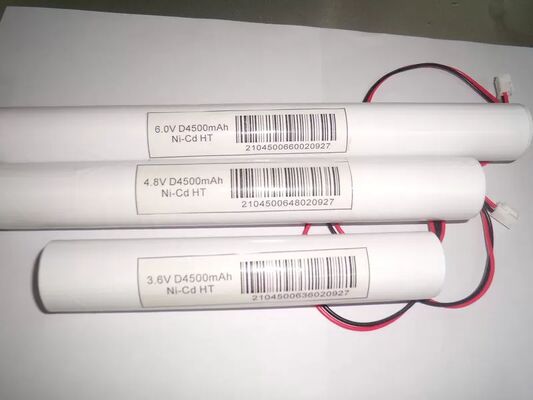

4500mAh 3.6V Emergency Lighting Battery Eco friendly Nicd Battery Cells
Features
- Eco-Friendly Design: Optimized manufacturing process reduces environmental impact. (Note: Requires recycling due to Cadmium content).
-
High Capacity & Energy Density: 4500mAh provides extended runtime for long-duration emergency lighting.
-
Exceptional Reliability: Designed for float charging and ready-state operation, perfect for emergency backup systems.
-
Wide Temperature Performance: Maintains operational capability in a wide range of environments, from -20°C to 60°C.
-
Long Service Life: Offers a robust cycle life of 500+ cycles, ensuring years of dependable service.
-
Low Self-Discharge: Retains charge significantly longer than NiMH batteries, ensuring readiness when needed.
-
Maintenance-Free Operation: When used in qualified emergency lighting fixtures with appropriate charging circuits.
Specifications
|
Model |
D-D4500mAh 1.2V |
|
Dimension |
33.0*61.8mm (Diameter*Height) |
|
Voltage |
1.2V |
|
Capacity |
4500mAh |
|
Iedance |
<20 mΩ |
|
Discharge cut-off voltage |
1.0V |
|
Maximum Charge voltage |
1.4V |
|
Standard charge current |
0.1C for 16 hours |
|
Standard discharge current |
0.2C |
|
Weight |
132g |
|
Working teerature |
Charge:0-70 degree |
|
Discharge:-20-70 degree |
|
|
Storage teerature |
minus 20 - 70 degree |
|
Self-Discharge Rate |
15-20% per month (at 20°C) |
|
Cycle life |
500-1000cycles |
Application
- Emergency Lighting: Central battery systems, maintained and non-maintained emergency luminaires (exit signs, floodlights), central inverter systems.
-
Security & Alarm Systems: Backup power for security control panels, motion sensors, and magnetic locks.
-
Uninterruptible Power Supplies (UPS): Backup for small-scale UPS in critical low-power applications.
-
Industrial Control Systems: Backup power for PLCs, sensors, and safety switches.
Warnings & Precautions
Charging
- For Emergency Lighting Use: This battery is designed for use in emergency lighting fixtures with constant-potential (float) chargers (typically ~4.5V - 5.0V).
-
Use Compatible Chargers Only. Do not use chargers designed for Li-ion or Lead-Acid batteries.
-
Never exceed the maximum charge voltage of 5.0V.
-
Avoid charging at temperatures below 0°C or above 45°C.
Discharging
- Avoid deep discharge below 3.0V (pack voltage). Deep discharging can shorten lifespan.
-
Do not short-circuit the terminals. High short-circuit current can cause overheating and terminal damage.
-
Ensure proper ventilation around the battery during operation, especially in enclosed fixtures.
Storage
- For long-term storage, store in a cool, dry place at a state of charge of approximately 40-50%.
-
Recharge every 6-12 months during storage to compensate for self-discharge and prevent capacity loss due to sulfation.
