14.8V 603880 1500mAh High Density Lithium Polymer Battery Lightweight
Product Details:
| Place of Origin: | China |
| Model Number: | 14.8V 603880 1500mAh |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Packaging Details: | Industrial Pakcage |
| Delivery Time: | 35 working days |
| Payment Terms: | L/C,T/T,Western Union |
|
Detail Information |
|||
| Capacity: | 1500 MAh | Voltage: | 14.8 V |
|---|---|---|---|
| Discharge Cut-off Voltage: | 12.0 V | Charging Voltage: | 16.8 V |
| Standard charge current: | 0.5C | Maximum Constant Charging Current: | 2C |
| Charge: | 0-45 Degree | Discharge: | -10-55 Degree |
| Highlight: | 1500mAh High Density Lithium Polymer Battery,603880 High Density Lithium Polymer Battery,14.8V High Density Lithium Polymer Battery |
||
Product Description

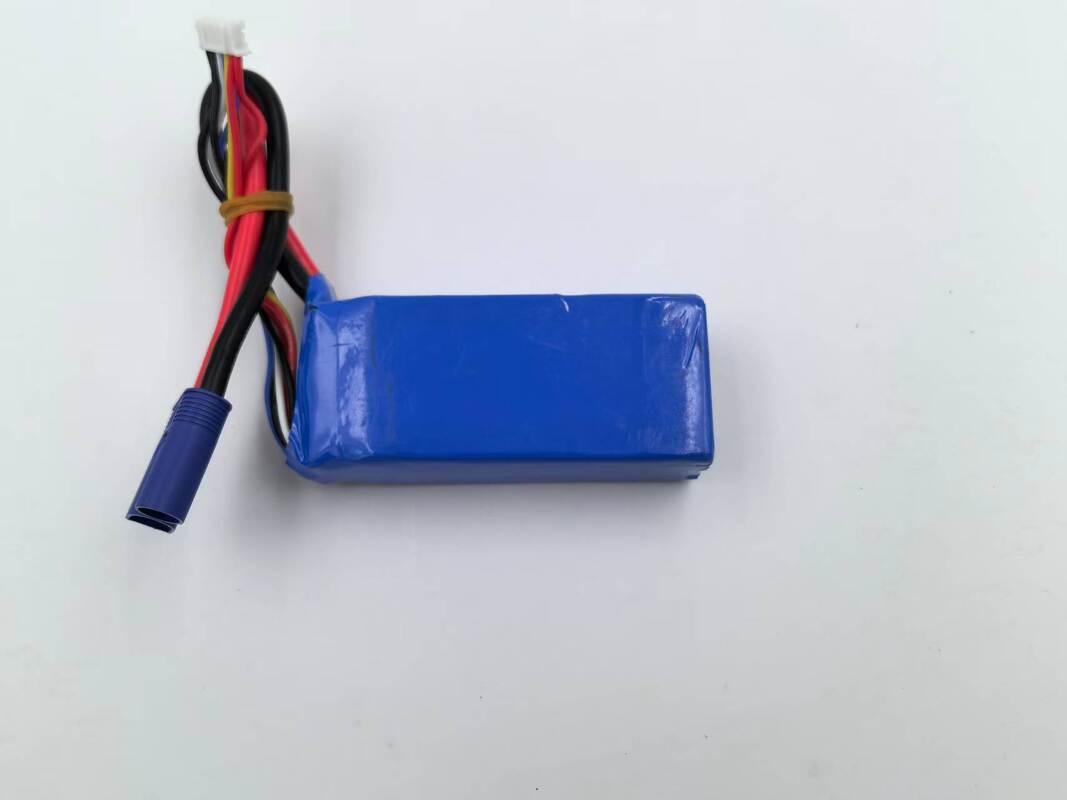

14.8V 603880 1500mAh High Energy Density Lithium Polymer Battery
Features
- High Energy Density: Offers a high amount of energy for its size and weight, making it ideal for portable applications.
-
Lightweight: Compared to other battery technologies like NiMH or lead-acid, LiPo batteries are significantly lighter.
-
Low Self-Discharge: Holds charge for longer when not in use compared to some other rechargeable batteries.
-
Flat Discharge Curve: Provides stable voltage for most of the discharge cycle, ensuring consistent device performance.
-
Flexible Form Factor: The pouch cell design allows for flexibility in shape and size to fit specific product designs.
Specification
|
Model |
603880-4S-1500mAh |
|
Voltage |
14.8 V |
|
Capacity |
1500 mAh |
|
Charging Voltage |
16.8 V (4.20V per cell)
|
|
Discharge Cut-off Voltage |
12.0 V (3.0V per cell) |
|
Standard charge current |
0.5C (750 mA) |
|
Maximum Constant Charging
Current
|
2C(300mA)
|
|
Working teerature |
Charge:0-45 degree |
|
Discharge:-10-55 degree |
|
|
Cycle life |
＞500 cycle |
Applications
- RC Hobbies & Drones: UAVs, aerial photography drones, and high-performance remote-controlled cars and airplanes.
- Portable Jump Starters: As a power source for compact car jump starter packs.
- Consumer Electronics: High-power portable devices, powerful flashlights.
- Electric Tools: Small to medium-sized power tools.
- Portable Power Packs: Custom-built or commercial mobile power banks.
Warnings & Precautions
Charging
- Use a LiPo-Specific Charger: Always use a balanced charger designed specifically for Lithium Polymer batteries. Never use chargers for NiCd or NiMH batteries.
- Never Overcharge: Set the charger correctly to 4.20V per cell (16.8V for the pack). Overcharging is a primary cause of fire.
- Charge in a Safe Area: Charge on a non-flammable surface and never leave batteries charging unattended. A LiPo safety bag is highly recommended.
- Correct Charging Current: Do not exceed the maximum charging current specified by the manufacturer. A rate of 0.5C (750mA for a 1500mAh pack) is standard and safer.
Discharging
- Do Not Over-Discharge: Never allow the battery voltage to fall below 3.0V per cell (12.0V for the pack). Over-discharging can permanently damage the battery and make it unsafe for recharge.
- Mind the Temperature: Do not discharge the battery at currents that cause it to exceed 60°C (140°F). If the battery becomes hot, stop using it and allow it to cool.
- Prevent Short Circuits: Never short-circuit the terminals. This can cause extreme heat, fire, or explosion. Use insulated tools when connecting/disconnecting.
- Avoid Physical Damage: Do not puncture, crush, or deform the battery. In case of a crash (e.g., with a drone), inspect the battery carefully for damage.
Storage
- Storage Voltage: For long-term storage (longer than a few days), discharge or charge the battery to its storage voltage of 3.8V per cell (15.2V for the pack). This significantly extends battery life.
- Storage Environment: Store in a cool, dry place away from flammable materials.
- Transport Safely: When transporting, protect terminals from shorting by covering them with tape and use a non-flammable container.
