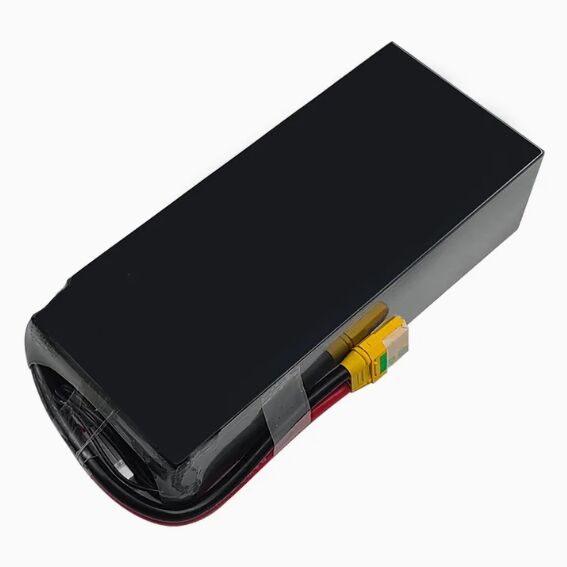

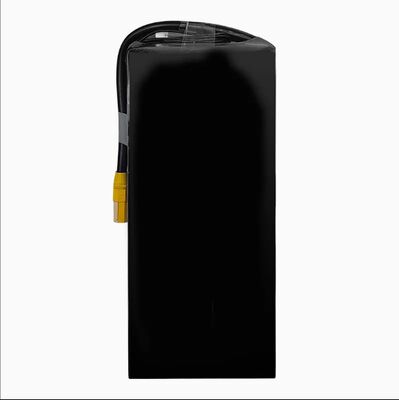

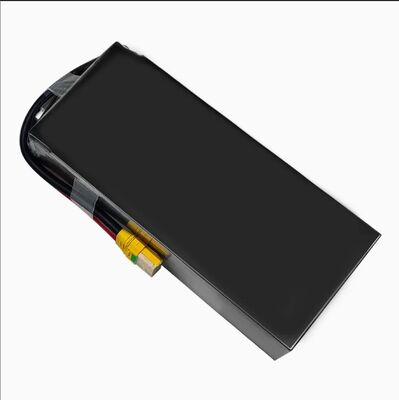

Vant 100C 78000mAh 23.7V Semi Solid State Lipo Battery For Drones
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Packaging Details: | Industrial Pakcage |
| Delivery Time: | 35 working days |
| Payment Terms: | L/C,T/T,Western Union |
|
Detail Information |
|||
| Nominal Voltage: | 23.7 V | Nominal Capacity: | 78Ah |
|---|---|---|---|
| Weight: | 1.4kg | Dimensions : | 125 Mm × 77 Mm × 74 Mm |
| Standard Charge Current: | 1C - 2C (78 A - 156 A) | Max Discharge Current: | 3C - 5C (234 A - 390 A) |
| Storage Temperature: | 10°C To 25°C | Cycle Life: | >300 Cycles |
| Name: | Semi Solid State Lipo Battery | ||
| Highlight: | 78000mAh Semi Solid State Lipo Battery,23.7V Semi Solid State Lipo Battery,Drones Semi Solid State Lipo Battery |
||
Product Description
Vant 100c 78000mAh 23.7V Semi Solid State Lipo Battery for Drones
Features
- Exceptional Power Density: The 100C continuous discharge rating provides immense power for demanding applications like heavy-lift drones and racing FPV drones, enabling high thrust and rapid acceleration .
-
Semi-Solid State Safety: The semi-solid (e.g., gel-polymer) electrolyte is less flammable than conventional liquid electrolytes, significantly enhancing resistance to leakage, thermal runaway, and improving overall safety .
-
High Energy Capacity: With 78Ah (1.85 kWh), this battery is designed for extended flight times, making it suitable for long-endurance missions .
-
High Discharge Platform & Stability: Maintains a high and stable voltage during discharge, ensuring consistent power output to keep your equipment performing optimally .
-
Robust Build Quality: Designed to meet rigorous safety standards such as UN38.3, IEC, and UL .
Specification
|
Dimensions
|
125 mm × 77 mm × 74 mm
|
|
Weight
|
1.4 kg
|
|
Nominal Voltage
|
23.7 V
|
|
Nominal capacity
|
78 Ah
|
|
Charging voltage
|
25.2 V (4.2V per cell)
|
|
Standard Charge Current
|
1C - 2C (78 A - 156 A)
|
|
Max discharge current
|
3C - 5C (234 A - 390 A)
|
|
Operation Temperature
|
Charge: 0ºC-45ºC
Discharge: -20ºC-60ºC |
|
Storage Temperature
|
10°C to 25°C
|
|
Cycle life
|
>300 cycles
|
Applications
- Heavy-Lift Drones: For cinematic cameras, delivery packages, or industrial sensors.
-
Long-Range FPV Drones: For mapping, surveying, and inspection missions.
-
Racing Drones: Where maximum burst power is critical for performance.
-
Industrial UAVs: For agricultural spraying, public safety, and search-and-rescue operations.
Warnings & Safety Instructions
Charging
- Use a Balanced Charger: Always use a high-quality balance charger designed for 6S LiPo batteries to ensure all cells charge evenly.
-
Never Leave Unattended: Never charge the battery unattended. Charge on a non-flammable surface (e.g., concrete, ceramic) inside a fireproof LiPo safety bag or container .
-
Monitor Temperature: Charge within the 0°C to +45°C temperature range. If the battery becomes warm to the touch, stop charging immediately .
-
Set Correct Parameters: Manually set the charger to the correct cell count (6S) and voltage (25.2V). The charge current should not exceed the maximum specified charge current .
Discharging & Use
- Avoid Over-Discharging: Never discharge below 18.0V (3.0V per cell). To prolong battery life, end your flights when the voltage reaches 19.8V (3.3V per cell) under load .
-
Monitor Temperature in Flight: After use, allow the battery to cool down to room temperature before recharging .
-
Inspect Before Each Use: Check for any physical damage, swelling, puffing, or unusual odors. Do not use a damaged battery .
Storage
- Storage Voltage is Critical: For long-term storage (longer than a few days), discharge or charge the battery to a storage voltage of 22.2V - 23.0V (3.7V - 3.8V per cell). Storing a battery fully charged or fully discharged will permanently damage it .
-
Storage Environment: Store in a cool, dry place (ideally 10°C - 25°C) away from direct sunlight and moisture. Use a fireproof container .
