6000mAh Semi Solid State Battery Rechargeable Lithium Ion Polymer Battery Pack 3.7 V
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Packaging Details: | Industrial Pakcage |
| Delivery Time: | 35 working days |
| Payment Terms: | L/C,T/T,Western Union |
|
Detail Information |
|||
| Name: | Rechargeable Lithium Ion Polymer Battery Pack 3.7 V | Normal Capacity: | 6000mAh |
|---|---|---|---|
| Normal Voltage: | 3.7V | Charging Voltage: | 4.2 V ± 0.05 V |
| Dimension: | 12.5*105*210mm | Standard Charge Current: | 0.5C (3000 MA) |
| Internal Resistance : | ≤ 8 MΩ | Fast Charge Current: | 1C (6000 MA) |
| Self-Discharge Rate: | <3% Per Month | ||
| Highlight: | 6000mAh Semi Solid State Battery,Semi Solid State Battery Rechargeable,Rechargeable Lithium Ion Polymer Battery Pack 3.7 V |
||
Product Description

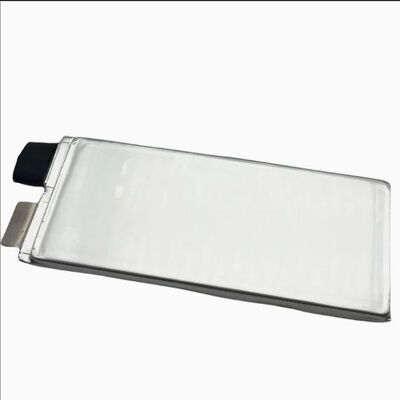

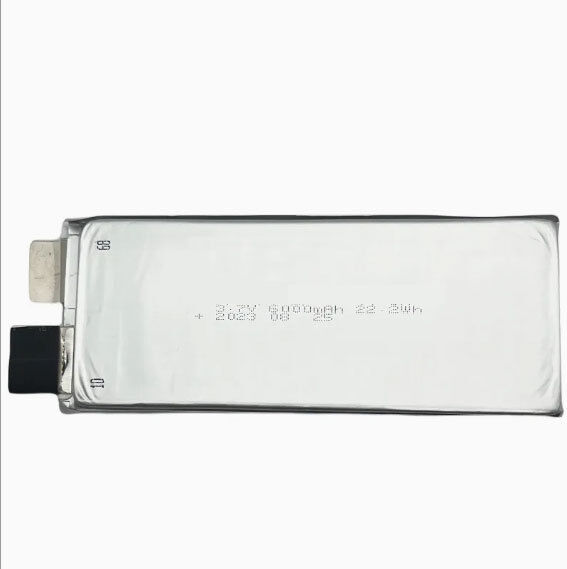

3.7V 6000mAh Semi Solid State Rechargeable Li-ion Lithium-Ion Polymer Battery Pack
Features
- Enhanced Safety Profile: The semi-solid electrolyte is less flammable than conventional liquid electrolytes, which can significantly improve the battery's resistance to leakage, thermal runaway, and enhance overall safety .
-
High Energy Density: This battery pack offers a substantial capacity of 6000mAh in a compact form factor, making it suitable for applications requiring long runtime .
-
Potential for Long Cycle Life: The semi-solid state can help suppress lithium dendrite growth and reduce side reactions at the electrode interfaces, contributing to extended cycle life .
-
Wide Operating Temperature Range: Capable of operating in a range of environments, with particularly better performance in low temperatures compared to some other battery types .
-
Lightweight and Flexible Packaging: Lithium polymer batteries using flexible packaging can be lighter and allow for thinner designs compared to traditional metal-cased batteries .
Specification
| Normal Capacity | 6000mAh |
| Normal Voltage | 3.7V |
| Charging Voltage | 4.2 V ± 0.05 V |
| Dimension | 12.5*105*210mm |
| Standard Charge Current | 0.5C (3000 mA) |
| Fast Charge Current | 1C (6000 mA) |
| Internal Resistance | ≤ 8 mΩ |
|
Max. Continuous Discharge Current |
30C (18000 mA) |
| Operation Teerature |
Charge:0°C to +45°C
Discharge:-20°C to +60°C |
| Weight | 605 g |
| Storage Temperature | -20°C to +35°C |
| Self-Discharge Rate | <3% per month |
Applications
- Consumer Electronics: Portable power banks, advanced personal audio equipment.
-
Portable Power Tools: Such as cordless drills and saws .
-
Light Electric Vehicles (LEVs): Electric scooters, e-bikes .
-
Backup Power Systems: Uninterruptible power supplies (UPS), emergency lighting .
-
Robotics and Drones: For powering automated systems and unmanned aerial vehicles .
-
Medical and Industrial Equipment: Portable monitoring devices and instruments .
Warnings & Safety Instructions
Chrging
- Use Designated Chargers: Charge only with a charger specifically designed for 3.7V lithium-ion/polymer batteries using the CC/CV method. Using an incorrect charger can cause damage or fire .
-
Temperature Control: Do not charge outside the specified temperature range (0°C to +45°C). Charging below 0°C or above 45°C is hazardous .
-
Voltage/Current Limits: Do not exceed the maximum charge voltage of 4.25V or the maximum charge current .
-
Avoid Overcharging: Do not leave the battery connected to the charger indefinitely after it is fully charged .
Discharging
- Voltage Limit: Do not discharge the battery below the cut-off voltage (2.75V-3.0V). Deep discharge can irreversibly damage the battery .
-
Current Limit: Do not exceed the maximum continuous discharge current .
-
Temperature Monitoring: If the battery becomes excessively hot during use, stop operation and allow it to cool down .
Storage
- Ideal Storage Charge: For long-term storage (longer than one month), store the battery at a state of charge between 30% and 50% (approx. 3.7V-3.9V) .
-
Storage Environment: Store in a cool, dry place away from direct sunlight, heat sources, and moisture. The recommended storage temperature is typically -20°C to +35°C .
