26700 3500mAh 3V Sodium Ion Battery Manufacturers , Sodium Cell Battery 85g
Product Details:
| Place of Origin: | China |
| Model Number: | 26700 3500mAh 3V |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Packaging Details: | Industrial Pakcage |
| Delivery Time: | 35 working days |
| Payment Terms: | L/C,T/T,Western Union |
|
Detail Information |
|||
| Name: | Sodium Cell Battery | Nominal Voltage: | 3.0V |
|---|---|---|---|
| Nominal Capacity: | 3500mAh | Charging Voltage: | 4.1 ± 0.05V |
| Internal Resistance: | ≤ 20mΩ | Dimensions : | 173.9mm × 48.3mm × 170mm |
| Weight: | 85g | Self-Discharge Rate: | < 5% Per Month |
| Cycle Life: | >3000 Cycles | ||
| Highlight: | 3500mAh Sodium Ion Battery,3V Sodium Ion Battery Manufacturers,Sodium Cell Battery 85g |
||
Product Description

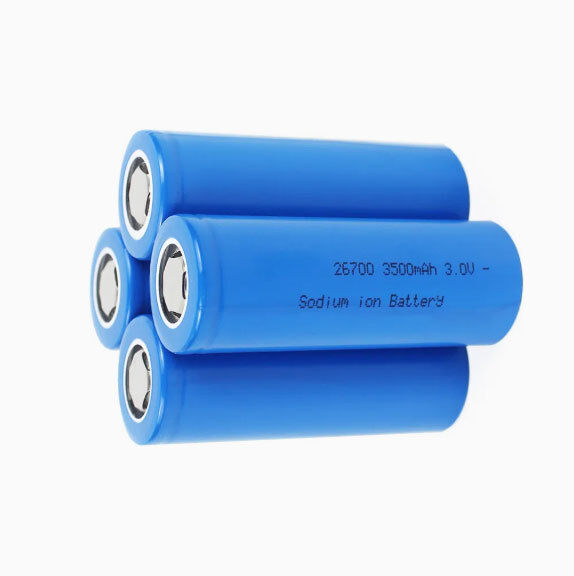

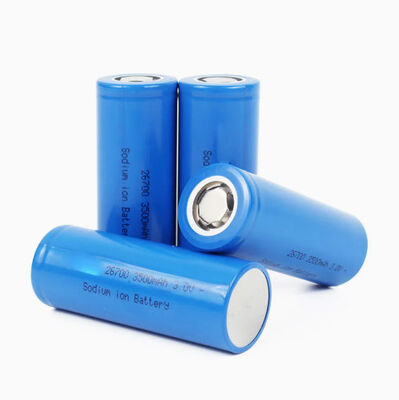

26700 3500mAh 3V Sodium-Ion Battery
Features
- Enhanced Safety: Sodium-ion chemistry is inherently more stable than some lithium-ion chemistries, exhibiting higher thermal runaway temperatures and being less prone to catching fire or exploding under abusive conditions like overcharging, short-circuiting, or physical damage .
-
Excellent Low-Temperature Performance: Maintains a higher discharge efficiency in cold environments compared to many Li-ion batteries, making it suitable for outdoor applications in winter .
-
High Power & Fast Charging: Capable of supporting high discharge rates (e.g., for power tools) and can be charged relatively quickly .
-
Cost-Effective & Eco-Friendly: Sodium resources are abundant and widely distributed, leading to potentially lower material costs and a more stable supply chain than lithium. The technology is also considered more environmentally benign .
-
Long Cycle Life: Designed for long-term use, with a cycle life that can exceed 2000 cycles under standard discharge conditions .
Specification
|
Type
|
sodium ion battery
|
|
Dimensions
|
173.9mm × 48.3mm × 170mm
|
|
Weight
|
85g
|
|
Nominal Voltage
|
3.0V
|
|
Nominal capacity
|
3500mAh
|
| Charging voltage | 4.1 ± 0.05V |
| Internal resistance | ≤ 20mΩ |
|
working voltage
|
2V-4V
|
|
Max discharge current
|
1C (3500mA) - 3C (10500mA)
|
|
Operation Temperature
|
Charge:-10ºC-45ºC
Discharge:-20ºC-60ºC |
|
Self-Discharge Rate
|
< 5% per month
|
|
Cycle life
|
>3000 cycles
|
Applications
- Light Electric Vehicles (LEVs): Electric scooters, electric bicycles, and electric tricycles .
-
Power Tools: Cordless drills, saws, and other high-drain tools .
-
Energy Storage Systems (ESS): Small-scale solar energy storage, uninterruptible power supplies (UPS) .
-
Portable Power Stations: Backup power for outdoor activities or emergency use.
-
Consumer Electronics: High-power portable devices.
Warnings & Safety Instructions
Charging
- Use Designated Chargers: Charge only with a charger specifically designed for sodium-ion batteries with the correct voltage and current limits. Using an incorrect charger is dangerous.
-
Temperature Control: Do not charge outside the specified temperature range (0°C to +55°C). Charging in extreme temperatures can cause permanent damage or hazard .
-
Avoid Overcharging: Do not leave the battery connected to the charger indefinitely after it is fully charged.
Discharging
- Voltage Limit: Do not discharge the battery below the recommended cut-off voltage. Deep discharge can irreversibly damage the battery.
-
Current Limit: Do not exceed the maximum continuous discharge current specified for the pack.
-
Temperature Monitoring: If the battery pack becomes excessively hot during use, stop operation and allow it to cool down.
Storage & Disposal
- Ideal Storage Charge: For long-term storage (longer than one month), store the battery at a state of charge between 30% and 50%.
-
Storage Environment: Store in a cool, dry place away from direct sunlight, heat sources, and moisture.
-
Disposal: Do not dispose of in regular trash. As a rechargeable battery, it must be recycled or disposed of according to local regulations at designated recycling centers.
