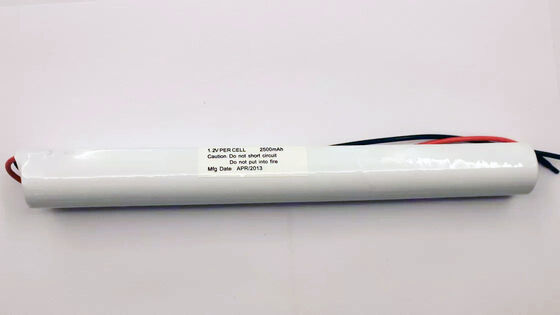

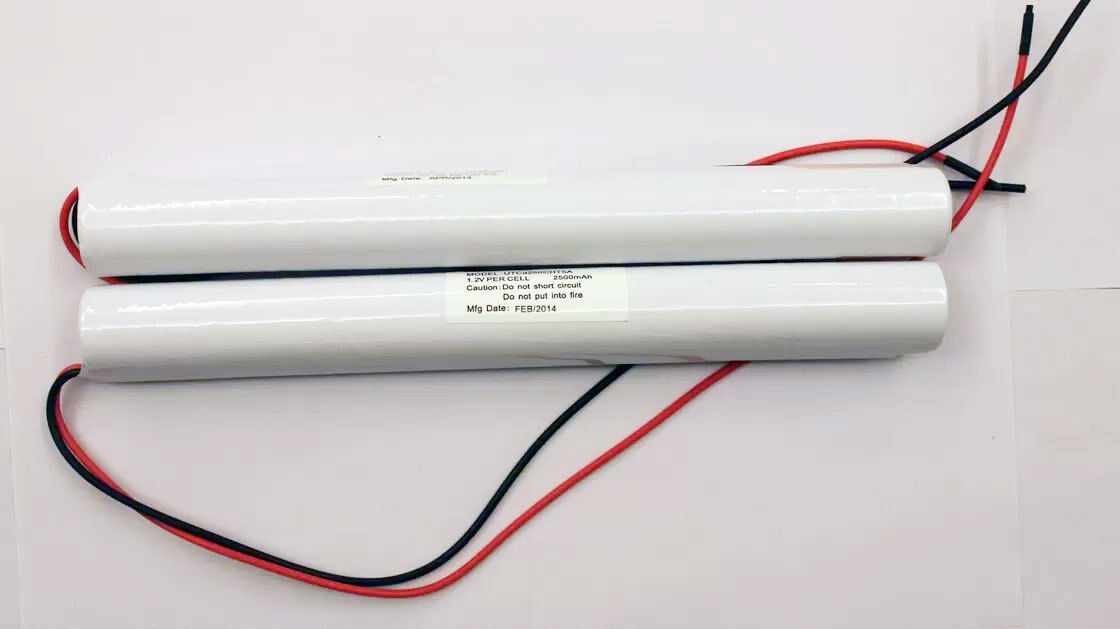

1.2V C2500mAh NiCd Emergency Lighting Battery 70g Maintenance Free
Product Details:
| Place of Origin: | China |
| Certification: | CE,ROHS, UL,REACH,KS |
| Model Number: | D-C2500mAh |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Packaging Details: | Industrial Pakcage |
| Delivery Time: | 35 working days |
| Payment Terms: | L/C,T/T,Western Union |
|
Detail Information |
|||
| Name: | Emergency Lighting Battery | Voltage: | 1.2V |
|---|---|---|---|
| Capacity: | 2500mAh | Weight: | 70g |
| Size: | 33.0*61.8mm (D Size) | Self-Discharge Rate: | 15-20% Per Month (at 20°C) |
| Internal Resistance: | ≤10mΩ | Cycle Life: | Up To 1000 |
| Warranty: | 4 Years | ||
| Highlight: | C2500mAh Emergency Lighting Battery,NiCd Emergency Lighting Battery,Emergency Lighting Batteries 70g |
||
Product Description
1.2V C2500mAh NiCd Emergency Lighting Battery
Features
- High Capacity Design: 2500mAh capacity provides extended runtime for emergency lighting systems.
-
Float Charge Optimized: Specifically designed for continuous float charge operation in emergency fixtures.
-
Excellent Temperature Performance: Stable operation from -20°C to 60°C.
-
Long Cycle Life: 500+ cycles with proper maintenance.
-
Low Self-Discharge: Maintains charge during standby periods.
-
Maintenance-Free: Sealed construction requires no watering.
-
Overcharge Tolerant: Withstands continuous float charging conditions.
-
High Reliability: Proven performance in critical emergency applications.
Specifications
|
Model |
D-C2500mAh 1.2V |
|
Dimension |
25.5*49mm (Diameter*Height) |
|
Voltage |
1.2V |
|
Capacity |
2500mAh |
|
Iedance |
≤10mΩ |
|
Discharge cut-off voltage |
1.0V |
|
Maximum Charge voltage |
1.4V |
|
Standard charge current |
0.1C (250mA) for 14-16 hours |
|
Standard discharge current |
0.2C |
|
Weight |
70g |
|
Working teerature |
Charge:0-45 degree |
|
Discharge:-20-60 degree |
|
|
Storage teerature |
minus 20 - 60 degree |
|
Self-Discharge Rate |
15-20% per month (at 20°C) |
|
Cycle life |
500-1000 cycles |
Application
- Emergency Lighting Systems: Single-cell emergency luminaires and exit signs.
-
LED Emergency Lights: Low-voltage LED emergency lighting fixtures.
-
Exit Signs: Self-contained LED exit signage.
-
Security Lighting: Emergency backup for security lights.
-
Portable Emergency Devices: Emergency lanterns and flashlights.
-
Backup Power Systems: Low-voltage emergency power applications.
Warnings & Precautions
Charging
- Use Emergency Lighting Chargers Only: Designed for float charge systems (1.40V-1.45V)
-
Never Use Fast Chargers not specifically designed for emergency lighting applications
-
Maintain charging temperature between 0°C and 45°C
-
Avoid charging in fully discharged state at temperatures below 0°C
Operation & Maintenance
- Perform regular duration tests as required by safety regulations
-
Test emergency lighting system monthly with brief functional test
-
Conduct annual 90-minute duration test per safety codes
-
Replace battery if emergency lighting duration falls below required minimum
-
Keep battery compartment clean and dry
Storage & Handling
- Store in cool, dry environment at room temperature
-
Ideal storage charge level: 40-50% of capacity
-
Recharge every 6 months during extended storage periods
-
Avoid storage in extreme temperatures or humid conditions
