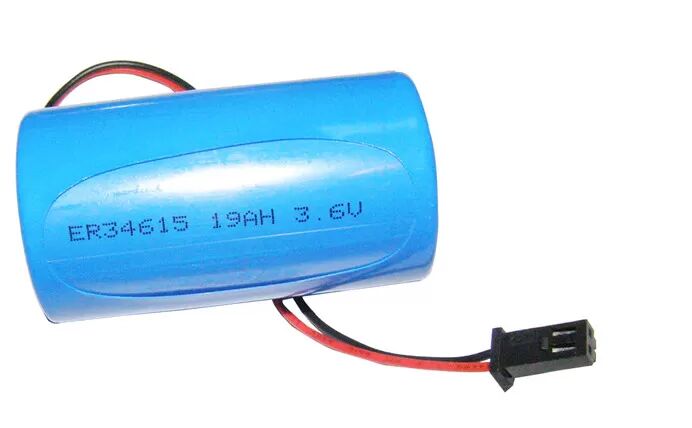

High Power 3.6V Cylindrical Li SOCl2 Battery ER34615 19000mAh Eco Friendly
Product Details:
| Place of Origin: | China |
| Certification: | CE,ROHS, UL, EN50020 |
| Model Number: | -ER34615 19000mAh 3.6V |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Packaging Details: | Industrial Pakcage |
| Delivery Time: | 35 working days |
| Payment Terms: | L/C,T/T,Western Union |
|
Detail Information |
|||
| Rated Capacity: | 19000mAh | Voltage: | 3.6V |
|---|---|---|---|
| Size: | 34 *61.5 Mm (Diameter*Height) | Long Shelf Life: | 15-20 Years |
| Weight: | 106g | Operating Teerature: | -55 ℃ To 85℃ |
| Cut-off Voltage: | 2.0V | Self-Discharge Rate: | <1% Per Year |
| Highlight: | Li SOCl2 Battery ER34615,Cylindrical Li SOCl2 Battery,3.6V Li Socl2 Battery |
||
Product Description
High Power 3.6V ER34615 Cylindrical Li-SOCl2 Battery 19000mAh Eco-friendly
Features
- High Energy Density: Offers one of the highest energy densities among primary batteries, ideal for long-life applications.
-
Excellent Shelf Life: Extremely low self-discharge rate (<1% per year) allows for storage lifespans of 10 years or more.
-
Wide Operating Temperature Range: Performs reliably in extreme environments, from -55°C to +85°C (some versions: -60°C to +85°C).
-
Stable Voltage Output: Maintains a stable voltage plateau throughout most of its discharge life (e.g., 90% of capacity).
-
Eco-Friendly Design: Does not contain mercury, cadmium, or lead.
-
Robust Construction: Often features a stainless steel case and a glass-to-metal hermetic seal for enhanced reliability and leakage prevention.
-
Maintenance-Free: As a primary battery, it requires no charging or maintenance during its service life.
Specifications
| Nominal(rated) voltage | 3.6V |
| Rated Capacity | 19000mAh |
| Dimensions | 34 *61.5 mm (Diameter*Height) |
| Weight | 106g |
| Cut-off Voltage | 2.0V |
|
Maximum Continuous Discharge Current |
200mA |
| Maximum Pulse Current | 400mA |
| Self-Discharge Rate | <1% per year |
| Operating Teerature | -55 ℃ to 85 ℃ |
| Long shelf life | 15-20 years |
Applications
- Smart Metering: Electricity, water, and gas meters (AMR/AMI systems).
-
Industrial & Medical Equipment: Wireless sensors, data loggers, medical devices, memory backup power, and real-time clocks.
-
Security & Safety Devices: Alarm systems, GPS trackers, and emergency lighting.
-
Automotive Electronics: Tire Pressure Monitoring Systems (TPMS).
-
Military and Aerospace: Suitable for various military communication equipment and aerospace applications due to wide temperature range and reliability.
Warnings & Safety Instructions
Operation
- Do Not Recharge: This is a primary (non-rechargeable) battery. Attempting to charge it can cause heating, leakage, rupture, or fire.
-
Avoid Short Circuits: A short circuit can generate extreme heat and lead to venting, explosion, or fire. Never place loose batteries where terminals can contact metal objects.
-
Current Limits: Do not exceed the manufacturer's specified maximum continuous (200-230mA) and pulse (400mA) currents. Using it in a higher drain application than designed for can cause voltage delay, premature failure, or hazard.
-
Voltage Monitoring: Avoid deep discharge below the recommended cut-off voltage (2.0V).
-
Temperature Limits: Operate within the specified temperature range. Exposure to excessive heat can be dangerous.
Storage & Disposal
- Storage: Store in a cool, dry place (preferably below 20°C, not exceeding 30°C).
-
Disposal: Do not dispose of in regular trash. These batteries must be recycled or disposed of as hazardous waste according to local regulations. Contact a licensed waste handler.
Other Prohibitions
- Do Not Incinerate: Incineration may cause explosion.
-
Do Not Disassemble: Disassembly will expose internal chemicals, which are harmful.
-
Do Not Mix: Do not mix with different battery types, brands, or old/new batteries.
