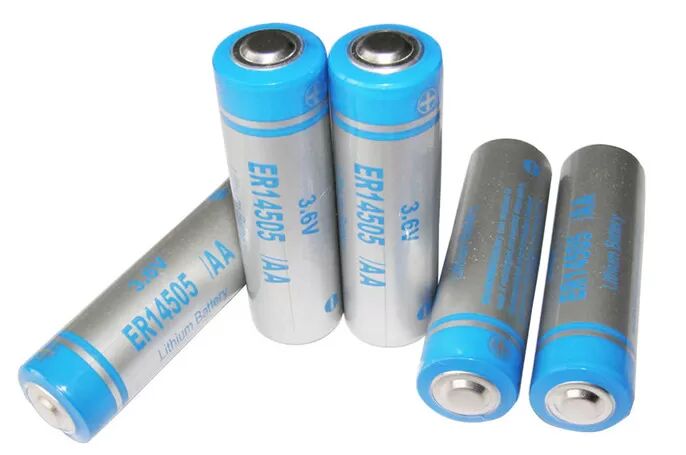

Gas Meter 3.6 V AA Lithium Battery 2400mah ER14505 LiSocl2 Battery High Capacity
Product Details:
| Place of Origin: | China |
| Certification: | CE,ROHS, UL, EN50020 |
| Model Number: | -ER14505 2400mAh 3.6V |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Packaging Details: | Industrial Pakcage |
| Delivery Time: | 35 working days |
| Payment Terms: | L/C,T/T,Western Union |
|
Detail Information |
|||
| Rated Capacity: | 2400 MAh | Voltage: | 3.6V |
|---|---|---|---|
| Size: | 14 * 50.5 Mm (Diameter*Height) | Long Shelf Life: | 15-20 Years |
| Weight: | 19 G | Operating Teerature: | -60 ℃ To 85 ℃ |
| Discharge Cut-off Voltage: | 2.0V | Self-discharge Rate: | <1% Per Year |
| Name: | 3.6 V AA Lithium Battery 2400mah | ||
| Highlight: | 3.6 V AA Lithium Battery 2400mah,ER14505 AA 3.6 V Lithium Battery,ER14505 LiSocl2 Battery |
||
Product Description
Gas Meter 3.6V AA ER14505 Li-SOCl2 Battery High Capacity
Features
- High Energy Density: Offers one of the highest energy densities among primary batteries, ideal for long-life applications.
-
Excellent Shelf Life: Extremely low self-discharge rate (<1% per year) allows for storage lifespans of 10 years or more.
-
Wide Operating Temperature Range: Performs reliably in extreme environments, from -60°C to +85°C.
-
Stable Voltage Output: Maintains a remarkably stable voltage plateau throughout most of its discharge life (e.g., 90% of capacity).
-
Robust Construction: Features a stainless steel case and a glass-to-metal hermetic seal for enhanced reliability and leakage prevention.
-
Maintenance-Free: As a primary battery, it requires no charging or maintenance during its service life.
Specification
| Normal Capacity | 2400mAh |
| Normal Voltage | 3.66V |
| Dimension | 14mm*50.5mm |
| Weight | 19g |
|
Max.continuous discharge current |
50mA |
| Max. Plus discharge current | 150mA |
| Self-discharge Rate | <1% per year |
| Operation Teerature | -60-85 degree |
| Shelf Life | More than 10 years |
| Discharge Cut-off Voltage | 2.0V |
Applications
- Smart Metering: Electricity, water, gas, and heat meters (AMR/AMI systems).
-
Wireless Sensors & IoT: Wireless alarm sensors, smoke detectors, temperature monitors, remote tracking systems, IoT devices.
-
Memory Backup: Real-time clocks (RTC), SRAM backup, computer support power.
-
Industrial Equipment: Oil drilling, mining, industrial automation, data loggers.
-
Medical Devices: Portable medical equipment.
-
Security Devices: Electronic locks, alarm systems.
-
Automotive Electronics: Tire Pressure Monitoring Systems (TPMS), ETC systems.
-
Military and Aerospace: Suitable for various military communication equipment and aerospace applications due to wide temperature range and reliability.
Warnings & Safety Instructions
Operation
- Do Not Recharge: This is a primary (non-rechargeable) battery. Attempting to charge it can cause heating, leakage, rupture, or fire.
-
Avoid Short Circuits: A short circuit can generate extreme heat and lead to venting, explosion, or fire. Never place loose batteries where terminals can contact metal objects.
-
Current Limits: Do not exceed the manufacturer's specified maximum continuous and pulse currents. Using it in a higher drain application than designed for can cause voltage delay, premature failure, or hazard.
-
Voltage Monitoring: Avoid deep discharge below the recommended cut-off voltage (2.0V).
-
Temperature Limits: Operate within the specified temperature range. Exposure to excessive heat can be dangerous.
Storage & Disposal
- Storage: Store in a cool, dry place (preferably below 20°C, not exceeding 30°C). Avoid high humidity.
-
Disposal: Do not dispose of in regular trash. These batteries must be recycled or disposed of as hazardous waste according to local regulations. Contact a licensed waste handler.
Other Prohibitions
- Do Not Incinerate: Incineration may cause explosion.
-
Do Not Disassemble: Disassembly will expose internal chemicals, which are harmful.
-
Do Not Mix: Do not mix with different battery types, brands, chemistries, or old/new batteries.
