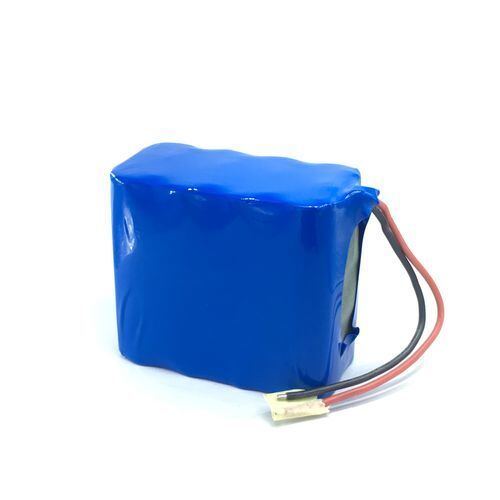

High Capacity 8800mAh 7.4V Lithium Ion Battery Packs For Medical Equipment
Product Details:
| Place of Origin: | China |
| Certification: | CE UL ISO KS |
| Model Number: | -18650 8800 mAh |
|
Detail Information |
|||
| Name: | Lithium Ion Battery Packs | Li-Ion Size:: | 8 X 18650 (cylindrical) |
|---|---|---|---|
| Capacity:: | 8800 MAh | Working Voltage:: | 7.4V |
| Iedance: | <100 MΩ | Standard Charge Current: | ≤4.5A |
| Discharge Cut-off Voltage: | 5.0V | Storage Temperature: | -20°C To +45°C |
| Cycle Life: | 500 - 1000 Cycles | ||
| Highlight: | 8800mAh Lithium Ion Battery Packs,7.4V Lithium Ion Battery Packs,High Capacity Li Ion Battery Pack |
||
Product Description
High Capacity 8800mAh 7.4V Lithium Ion Battery Packs For Medical Equipment
Features
- High Capacity & Reliability: Provides 8800mAh capacity for extended runtime of medical devices, reducing frequency of recharges and ensuring operational reliability .
- Enhanced Safety for Medical Use: Designed with comprehensive protection (overcharge, over-discharge, overcurrent, short circuit, temperature) and utilizes high-quality imported protection chips and MOSFETs to maximize safety in critical medical environments .
- Long Cycle Life: Engineered to retain over 80% of its initial capacity after more than 500 full charge-discharge cycles, ensuring long service life and reducing total cost of ownership .
- Medical Compliance & Certification: Typically complies with international safety standards such as CE, CB, PSE, UN38.3, and IEC 62133, which are often requisites for medical electronic equipment .
Specifications
|
Nominal Voltage |
7.4V |
|
Nominal Capacity |
8800mAh |
|
Iedance |
<100 mΩ |
|
Discharge cut-off voltage |
6.0 V |
|
Maximum Charge voltage |
8.4 V |
|
Standard charge current |
≤4.5A
|
|
Standard discharge current |
4A
|
|
Working teerature |
Charge:0-45 degree |
|
Discharge:-10-55 degree |
|
|
Storage teerature |
minus 20 - 45degree |
|
Cycle life |
500 - 1000 cycles |
Applications
- Patient Monitoring Devices: Patient monitors, vital signs monitors, portable ECG machines, pulse oximeters.
-
Therapeutic and Life Support Equipment: Infusion pumps, portable ventilators, anesthesia machines, defibrillators (external), CPR devices.
-
Diagnostic Equipment: Portable ultrasound machines, mobile X-ray systems, digital microscopes, medical scanners.
-
Medical Carts and Mobile Workstations: Computerized medication carts, mobile nursing stations, portable diagnostic carts.
-
Other Medical Devices: Blood analyzers, medical lighting systems, dental equipment, rehabilitation and physical therapy devices.
Warnings & Precautions
Charging
- Use Approved Medical-Grade Chargers: Always use the manufacturer-specified charger designed for medical devices and this battery pack. Using an incompatible charger is extremely dangerous .
-
Avoid Overcharging: Do not exceed the maximum charge voltage (8.4V or as specified). While the PCM offers protection, it is a safety backup .
-
Temperature Monitoring: Charge only within the specified 0°C to +45°C range. Charging outside this range is dangerous .
Discharging
- Avoid Deep Discharge: Prevent deep discharge below the cut-off voltage. The PCM will disconnect, but consistent deep discharge harms longevity .
- Current Limits: Do not exceed the maximum continuous discharge current (e.g., 4A). Excessive current causes overheating .
- Temperature Management: Operate within the -10°C to +55°C discharge range for medical use. Extreme temperatures affect performance and safety .
Storage
- Partial Charge Storage: For long-term storage, maintain a 30%-50% State of Charge (SOC) .
-
Cool and Dry Environment: Store in a cool, dry place within the recommended temperature range (-20°C to +45°C, time-limited) .
