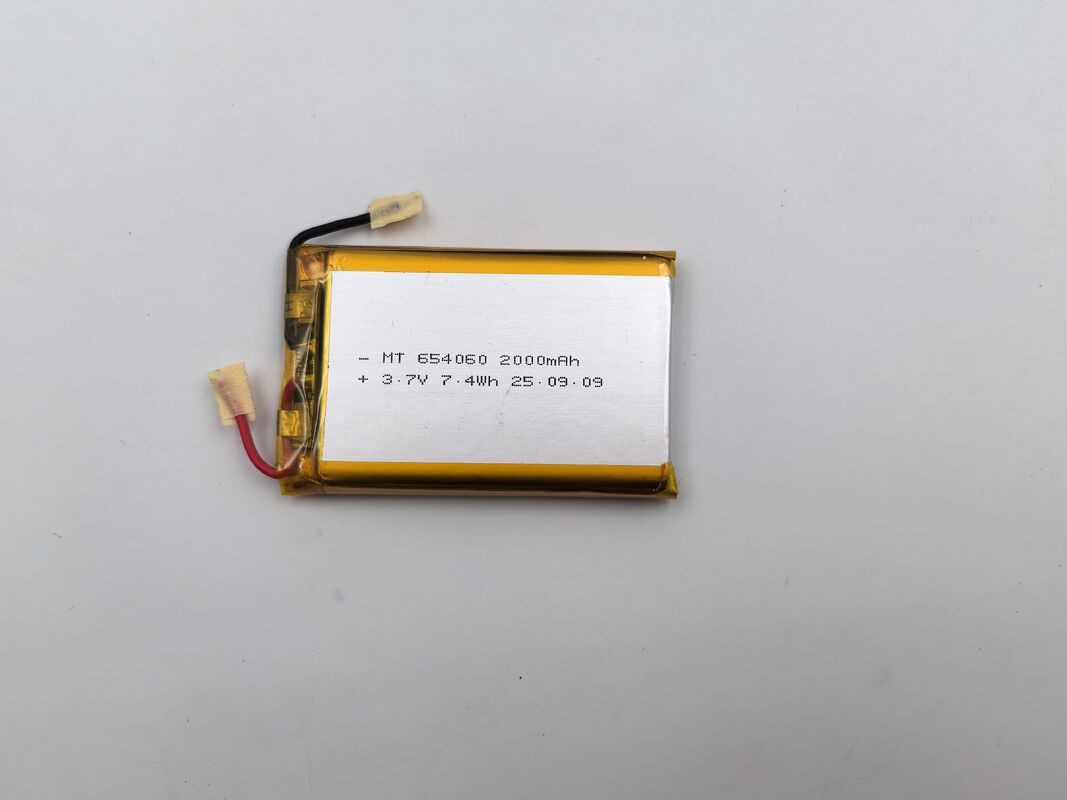

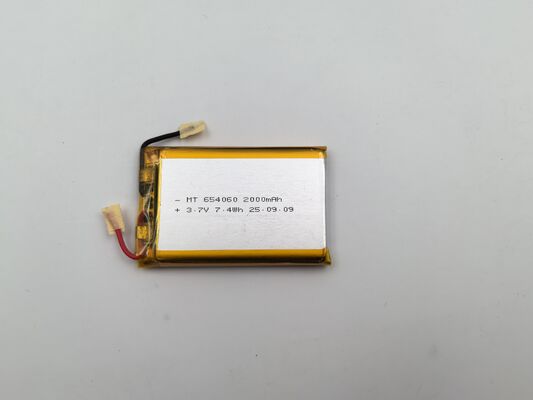

Reliable Wearable Power Solution: 2000mAh, 3.7V Ultra-Slim Cell with Long Cycle Life
Product Details:
| Place of Origin: | China |
| Model Number: | 3.7V 654060 2000mAh |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Packaging Details: | Industrial Pakcage |
| Delivery Time: | 35 working days |
| Payment Terms: | L/C, T/T, Western Union |
|
Detail Information |
|||
| Voltage: | 3.7 V | Capacity: | 2000 MAh |
|---|---|---|---|
| Standard Charge Current: | 0.5C (1000 MA) | Discharge Cut-off Voltage: | 3.0 V |
| Charge: | 0°C To 45°C | Discharge: | -20°C To 60°C |
| Internal Resistance: | ≤ 150 MΩ | Cycle Life: | 1000 Cycles |
Product Description
Reliable Wearable Power Solution: 2000mAh, 3.7V Ultra-Slim Cell with Long Cycle Life
Features
-
Flexible and Compact Form Factor: The soft aluminum-polymer laminated pouch allows for a slim, lightweight, and potentially customizable shape to fit constrained device spaces.
-
High Energy Density: Offers a favorable balance of capacity and physical volume, enabling longer runtimes for portable applications.
-
Enhanced Safety Characteristics: The soft-pack design and use of polymer/gel electrolyte reduce the risk of leakage.
-
Long Cycle Life & Low Self-Discharge: Designed for repeated use with a long service life and retains charge well when not in use .
Specifications
| Nominal Voltage | 3.7 V |
| Nominal Capacity | 2000 mAh |
| Discharge cut-off voltage | 3.0 V |
|
Max. Continuous Discharge Current |
1.25C (2.5 A) |
| Standard charge current |
0.5C (1000 mA)
|
| Fast Charge Current |
1.0C (2000 mA)
|
| Internal Resistance | ≤ 150 mΩ |
| Working teerature | Charge:0°C to 45°C |
| Discharge:-20°C to 60°C | |
| Storage teerature | -20°C to 45°C |
| Cycle life | 1000 cycles |
Applications
-
Portable Consumer Electronics: Bluetooth headsets, portable speakers, handheld gaming devices (e.g., PSP), GPS trackers .
-
Smart Wearables & Health Devices: Smartwatches (bands), fitness trackers, portable medical monitors, massage guns, heated apparel .
-
Handheld Tools & Instruments: Digital calipers, laser measures, portable scanners.
-
Toys and Hobbyist Projects: Remote-controlled toys, drones (for micro or nano classes), DIY electronics.
Warnings & Precautions
Charging
-
Use a Dedicated Charger: ALWAYS use a Li-ion/Li-Po specific charger designed for the correct CC/CV method and the precise charge voltage.
-
Never Overcharge: Do not leave the battery connected to the charger indefinitely after it is fully charged.
-
Charge in a Safe Area: Always charge on a non-flammable surface in a well-ventilated area. Never charge unattended or while sleeping.
-
Respect Temperature Limits: Charge only within the specified temperature range (0°C to 45°C). Do not charge below 0°C.
Discharging
-
Prevent Over-Discharge: Never discharge the cell below the 3.0V cut-off voltage. Continuous over-discharge will cause permanent damage and is a safety hazard .
-
Avoid Extreme Loads: Do not exceed the specified maximum continuous discharge current.
-
Temperature Management: If the battery becomes excessively hot (e.g., >60°C) during use, stop the operation immediately and allow it to cool down in a safe place.
Storage
-
Optimal Storage State: For long-term storage (>1 month), condition the battery to a 30%-50% state of charge (approx. 3.7V - 3.8V) .
-
Storage Environment: Store in a cool, dry place away from direct sunlight, heat sources, and flammable materials.
-
Transport Precautions: Protect terminals from short circuits by covering them with insulating tape or using individual plastic storage bags.
