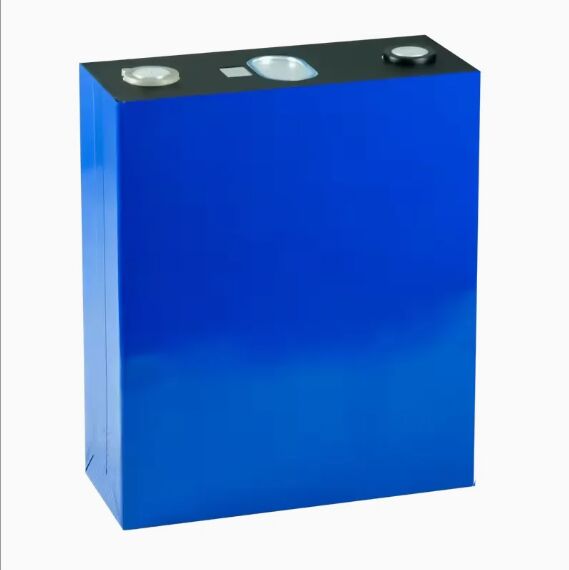

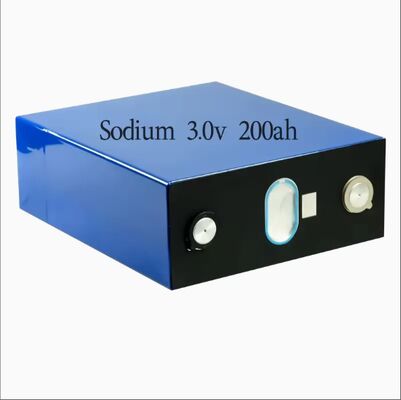

Grade A Sodium Ion Battery Pack 3V 200Ah Na Cell For Home Energy Storage
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Packaging Details: | Industrial Pakcage |
| Delivery Time: | 35 working days |
| Payment Terms: | L/C,T/T,Western Union |
|
Detail Information |
|||
| Nominal Voltage: | 3.0 V | Nominal Capacity: | 200 Ah |
|---|---|---|---|
| Weight: | 5.2 Kg | Dimensions (L×W×H): | 72 Mm × 174.2 Mm × 204 Mm |
| Standard Charge Current: | 0.5C (100 A) | Internal Resistance: | ≤0.25mΩ |
| Self-Discharge Rate: | < 3% Per Month | Cycle Life: | ≥ 3,000 Cycles |
| Highlight: | Sodium Ion Battery Pack 3V,Sodium Ion Battery Pack 200Ah,Grade A Sodium Ion Battery Pack |
||
Product Description
Sodium-Ion Battery 3V 200ah Brand New Grade a Na Cell for Home Energy Storage
Key Features
- Enhanced Safety: Sodium-ion chemistry is inherently more stable, offering higher resistance to thermal runaway, and often passes stringent tests like overcharge, short-circuit, and nail penetration without fire or explosion.
- Excellent Low-Temperature Performance: Maintains strong functionality in cold environments, with discharge capacity retention of over 85% at -20°C.
- Long Cycle Life: Engineered for long-term use, with a cycle life of 3,000 cycles or more (to 80% of initial capacity), reducing the frequency of replacement.
- Cost-Effective & Sustainable: Sodium resources are abundant and widely distributed, leading to lower material costs (typically 30%-40% lower than lithium-ion) and a more stable supply chain.
- Fast Charging Capability: Supports relatively fast charging; some Na-Ion batteries can support 2C fast charging.
Technical Specifications
| Nominal Voltage | 3V |
|---|---|
| Nominal Capacity | 200Ah |
| Weight | 5.2kg |
| Maximum Continuous Discharge Current | 1C (200 A) - 3C (600 A) |
| Standard Charge Current | 0.5C (100 A) |
| Internal Resistance | ≤0.25mΩ |
| Cycle Life | ≥3000 cycles |
| Operating Temperature | Charge: 0°C to +60°C Discharge: -30°C to +60°C |
| Storage Temperature | -20°C to +35°C |
| Discharge Cut-off Voltage | 4V |
| Self-Discharge Rate | < 3% per month |
Applications
- Home Energy Storage Systems (ESS): Integration with solar PV systems for self-consumption, backup power, and load shifting.
- Commercial & Industrial Energy Storage: Medium to large-scale energy storage for peak shaving and grid support.
- Uninterruptible Power Supplies (UPS): Backup power for critical home or office equipment.
- Low-Speed Electric Vehicles & Electric Bicycles: Where weight is less critical than cost and low-temperature performance.
Safety Instructions & Warnings
Charging
- Use Designated Chargers/Controllers: Charge only with equipment designed for sodium-ion batteries with the correct voltage (e.g., ≤ 3.95V per cell) and current limits.
- Temperature Control: Do not charge outside the recommended temperature range (-20°C to +60°C, ideally 0°C to +45°C). Charging below -20°C can cause permanent damage.
- Voltage/Current Limits: Do not exceed the maximum charge voltage or current.
Discharging
- Voltage Limit: Do not discharge the battery below the recommended cut-off voltage (≥1.8V). Deep discharge can irreversibly damage the battery.
- Current Limit: Do not exceed the maximum continuous discharge current.
- Temperature Monitoring: If the battery becomes excessively hot during use, stop operation and allow it to cool down.
Storage & Disposal
- Ideal Storage Charge: For long-term storage (longer than one month), store the battery at a state of charge between 30% and 50% (approx. 3.4V - 3.6V).
- Storage Environment: Store in a cool, dry place away from direct sunlight, heat sources, and moisture. The recommended storage temperature is typically -20°C to +35°C.
- Disposal: Do not dispose of in regular trash. As a rechargeable battery, it must be recycled or disposed of according to local regulations at designated battery recycling centers.
