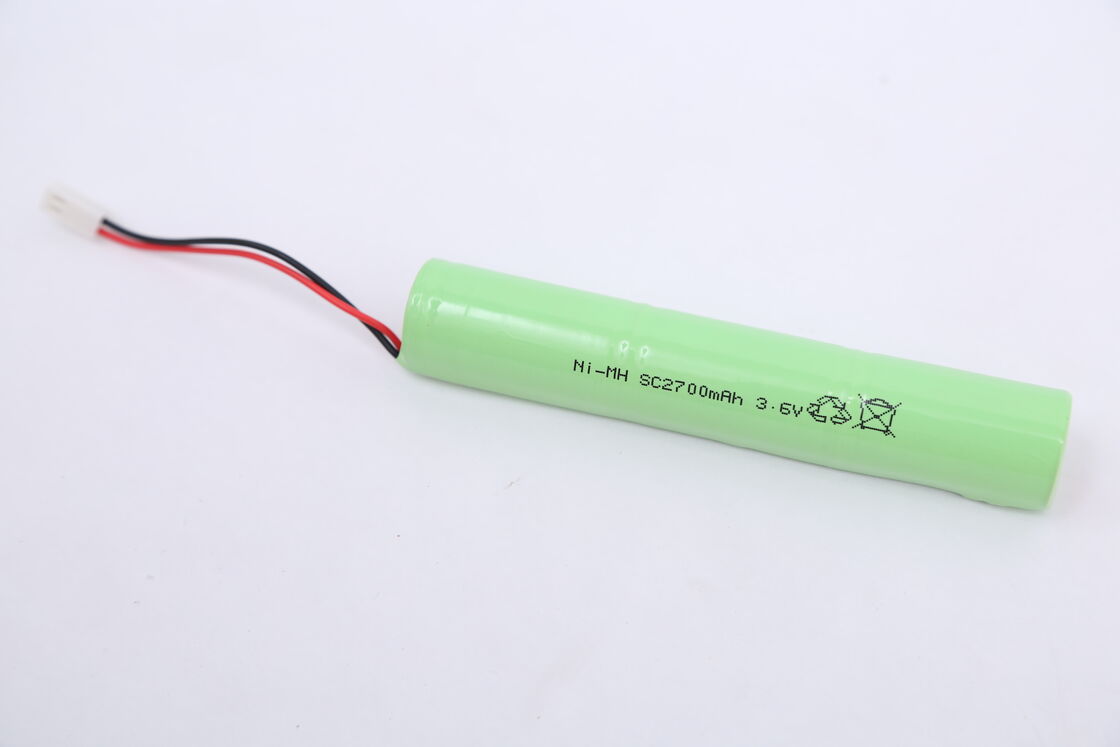

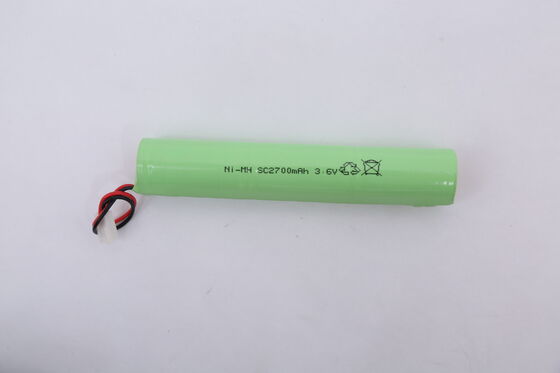

2700mAh 3.6V NImh Emergency Light Battery For High Energy Density
Product Details:
| Place of Origin: | China |
| Model Number: | D-C2700mAh |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Packaging Details: | Industrial Pakcage |
| Delivery Time: | 35 working days |
| Payment Terms: | L/C,T/T,Western Union |
|
Detail Information |
|||
| Voltage: | 3.6v | Capacity: | 2700mAh |
|---|---|---|---|
| Dimensions: | 33.0mm × 61.8mm | Weight: | 120g |
| Standard Charge Current: | 0.1C (270mA) For 14-16 Hours | Self-Discharge Rate: | 20-30% Per Month (at 20°C) |
| Internal Resistance: | ≤20mΩ | Cycle Life: | ≥500 Cycles |
| Highlight: | 3.6V Emergency Light Battery,NImh Emergency Light Battery,2700mAh Emergency Light Battery |
||
Product Description
2700mAh 3.6V NImh Emergency Lighting Battery for High Energy Density
Features
- Eco-Friendly: Cadmium-free chemistry, more environmentally friendly than NiCd.
-
High Energy Density: 2700mAh capacity provides long runtime.
-
Low Memory Effect: Minimal capacity reduction with partial cycling.
-
Maintenance-Free: Sealed construction, no watering required.
-
Good Low-Temp Performance: Operates down to -10°C.
-
Float Charge Compatible: Suitable for emergency lighting applications.
-
Safe Operation: Lower risk of thermal runaway compared to Li-ion.
Specifications
|
Dimension |
33.0*61.8mm (Diameter*Height) |
|
Voltage |
3.6V |
|
Capacity |
2700mAh |
|
Iedance |
<20 mΩ |
|
Discharge cut-off voltage |
3.0V (1.0V per cell) |
|
Maximum Charge voltage |
1.4V |
|
Standard charge current |
0.1C (270mA) for 14-16 hours |
|
Weight |
<120g |
|
Working teerature |
Charge:0-40 degree |
|
Discharge:-10-50 degree |
|
|
Storage teerature |
minus 20 - 30 degree |
|
Self-Discharge Rate |
20-30% per month (at 20°C) |
|
Cycle life |
≥500 cycles |
Applications
- Emergency Lighting: Exit signs, emergency luminaires
-
Backup Power: Security systems, alarm panels
-
LED Lighting: Emergency LED fixtures
-
Portable Devices: Emergency lanterns, flashlights
-
Medical Equipment: Backup power for medical devices
-
UPS Systems: Small uninterruptible power supplies
Warnings & Precautions
Charging
- Use NiMH-specific chargers only
-
Avoid overcharging; use chargers with proper termination
-
Do not charge at temperatures below 0°C or above 40°C
-
Monitor battery temperature during charging
-
Use correct charge voltage (4.5V-5.0V for 3.6V pack)
Discharging
- Avoid deep discharge below 3.0V
-
Do not short-circuit terminals
-
Monitor temperature during high-rate discharge
-
Allow cooling between high-current cycles
Storage
- Store at room temperature with 40-50% charge
-
Recharge every 3-6 months during storage
-
Avoid storage in fully charged or discharged state
-
Keep away from direct sunlight and heat sources
