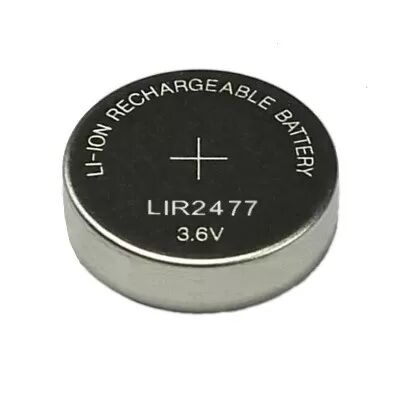

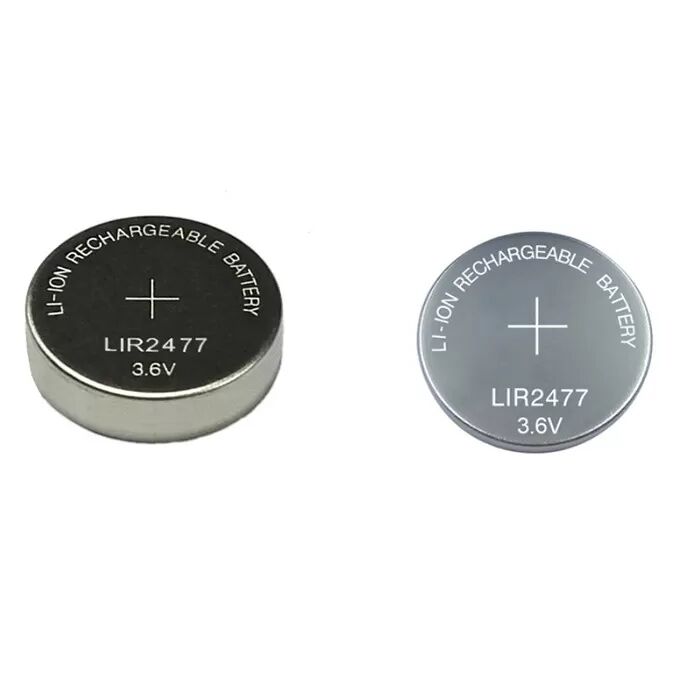

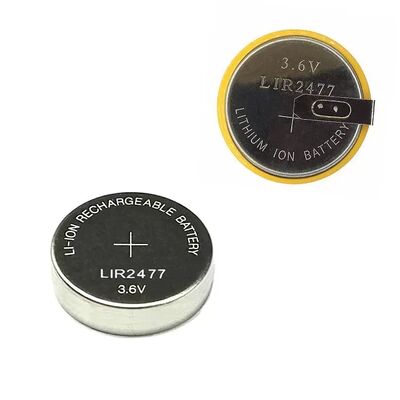

LIR2477 Lithium Ion Rechargeable Batteries 3.6V 200mAh Rechargeable Lithium Coin Cell
Product Details:
| Place of Origin: | China |
| Certification: | CE UL MSDS UN38.3 |
| Model Number: | LIR2477 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Packaging Details: | Industrial Pakcage |
| Delivery Time: | 35 working days |
| Payment Terms: | L/C,T/T,Western Union |
|
Detail Information |
|||
| Battery Type: | Lithium Button Battery | Model: | LIR2477 |
|---|---|---|---|
| Voltage: | 3.6V | Capacity: | 200mAh |
| Dimension: | Diameter 24.5mm Height 7.7mm | Weight: | 8g |
| Cycle Life: | More Than 500Cycles | Operation Teerature: | -20-60 Degree |
| Highlight: | LIR2477 Lithium Ion Rechargeable Batteries,LIR2477 Rechargeable Battery 3.6 V,200mAh Rechargeable Lithium Coin Cell |
||
Product Description
Rechargeable Button Battery LIR2477 3.6V 200mAh Lithium Button Cell Coin Battery
Features
1. High Energy Density: Provides substantial power in a compact form factor suitable for space-constrained applications.
2. Stable Voltage Output: Maintains relatively stable voltage throughout most of the discharge cycle.
3. Wide Operating Temperature: Widely application with working teerature -20 degree to 60 degree.
4. Low Self-Discharge: Retains charge well when not in use.
5. No Memory Effect: Can be recharged at any state of charge without capacity reduction.
Specification
| Lithium ion Button battery LIR2477 | 3.6V rechargeable Coin cell |
| Normal Capacity | 200mAh |
| Normal Voltage | 3.6V |

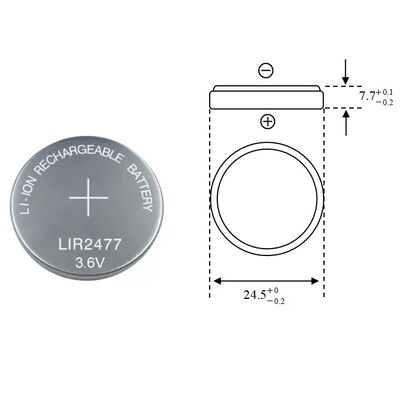

| Dimension | Diameter :24.5*Height 7.7mm |
| Weight | 8g |
| Operating Temperature |
Charge: 0°C to 45°C; Discharge: -20°C to 60°C |
| Storage Temperature |
-20°C to 45°C (Recommended: 20-25°C) |
| Self-Discharge Rate | <3% per month |
| Cycle Life | More than 500Cycles |
Applications
- Memory Backup Power: CMOS batteries for motherboards, BIOS chips, and embedded systems.
- Portable Electronics: Small devices like calculators, laser pointers, and LED lights.
- Medical Devices: Hearing aids, medical sensors, and portable monitoring equipment.
- IoT Devices: Sensors, beacons, and small wireless communication devices.
- Security Devices: Electronic locks, alarm systems, and access control devices.
- Wearable Technology: Fitness trackers, smart watches, and health monitors.
Warnings & Precautions
Charging Precautions:
- Use only chargers specifically designed for lithium-ion coin cells
-
Never exceed maximum charging voltage of 4.2V
-
Do not charge at temperatures below 0°C or above 45°C
-
Discontinue use if battery becomes hot, swollen, or damaged during charging
-
Charge in well-ventilated areas
Discharging Precautions:
- Avoid deep discharge below 3.0V
-
Do not exceed maximum continuous discharge current of 200mA
-
Never short-circuit the battery terminals
-
Avoid reverse polarity installation
- Store in cool, dry environment (20-25°C ideal)
- Maintain charge level at 40-60% for long-term storage
- Keep away from water, moisture, and direct sunlight
