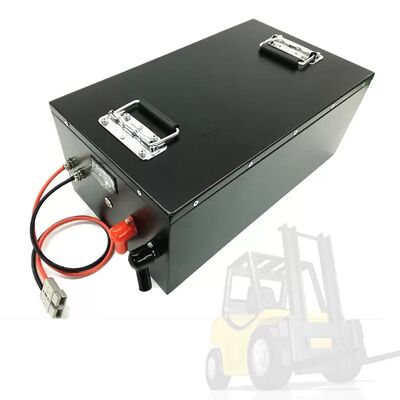

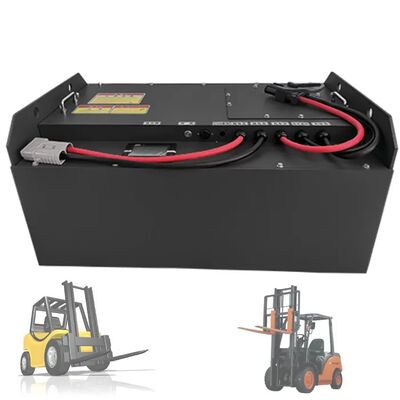

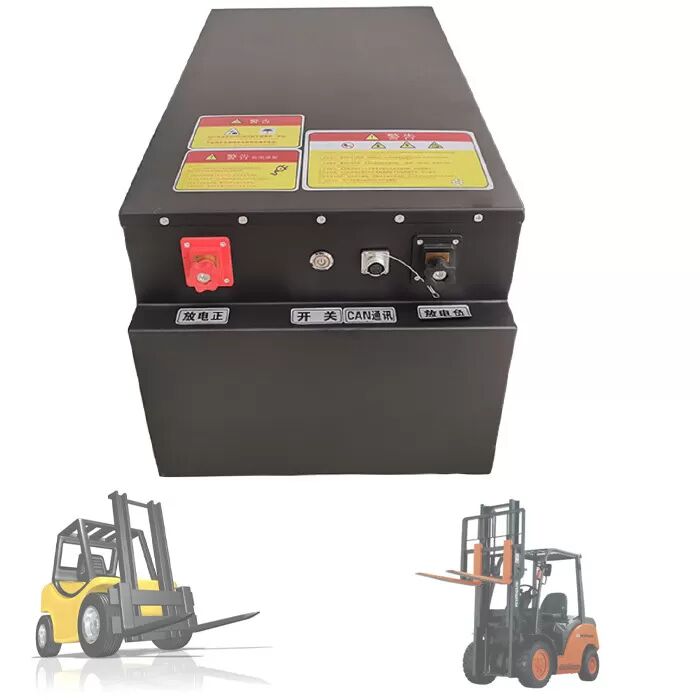

7168Wh 24V 280Ah Forklift Lithium Battery , AGV Lifepo4 Battery Pack
Product Details:
| Place of Origin: | China |
| Certification: | CE MSDS UN38.3 |
| Model Number: | 24V 280Ah lifepo4 Battery |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Packaging Details: | Industrial Pakcage |
| Delivery Time: | 35 working days |
| Payment Terms: | L/C,T/T,Western Union |
|
Detail Information |
|||
| Name: | Lithium LiFePO4 Battery | Battery Type: | AGV Lifepo4 Battery |
|---|---|---|---|
| Voltage: | 25.6V | Capacity: | 280Ah |
| Size: | 633*183*226mm | Weight: | 49kg |
| Operation Teerature: | -20-60 Degree | Cycle Life: | More Than 3500 Cycles |
| Guarantee: | One Years | ||
| Highlight: | 24V Forklift Lithium Battery,280Ah Forklift Lithium Battery,AGV Lifepo4 Battery Pack |
||
Product Description
AGV forklift Lithium LiFePo4 Battery 24V 280Ah forklift battery pack
Features:
- Remote teerature Monitor
- Cycle life monitor GPS location tracking
- Usage state management
- charge /Discharge data management
- Long cycle life more than 3500 cycles
Specification :
|
AGV forklift battery Specification |
24V 280Ah LiFePo4 battery Pack |
| Normal Capacity | 280Ah |
| Normal Voltage | 25.6V |
| Energy | 7168Wh |
| Dimension | 633mm *183mm *226mm |
| Max. charge voltage | 29.2V |
| Min. discharging Voltage (v) | 20V |
| Charging Method |
CC-CV(Constant voltage with limited current ) |
| Weight | 49kg |
|
Allowed max Charge current |
280A |
|
Allowed max discharge Current |
280A |
| Peak discharge current | 500A 60S |
| shipment power | 20%-50%SOC |
|
Battery with smart BMS function |
GPS ,RS485 ,Balance Function, battery heating function |
| Operation Teerature | -20-60 degree |
| Quality Guarantee | one years |
| Application |
AGV Fork lift ,Low speed Car,Scooter , vehicle ,Golf Trolley ,golf car , |
|
EV ,EBIKE UPS,RV Caer ,marine , overland/Van,golf cart ,lighting |
Long Lifespan & Durability:
Cycle Life: 3,000+ cycles at 80% depth of discharge (DOD), significantly outperforming lead-acid batteries.
Low Self-Discharge: Loses less than 3% charge per month, ensuring readiness for extended shifts.
Fast Charging & Efficiency:
Charging Current: Supports up to 30A fast charging, achieving full charge in under 2 hours
Opportunity Charging: Enables partial charging during breaks without damaging the battery, maximizing operational uptime.
Advanced Safety & Management:
Battery Management System (BMS): Integrated BMS protects against overcharge, over-discharge,
short circuits, and temperature extremes. It ensures cell balancing and maintains voltage stability within ±0.05V.
Temperature Resilience: Operates reliably in -20°C to 60°C environments, making it suitable
for cold storage and high-heat settings.
IP65 Rating: Dust-tight and water-resistant, ensuring durability in harsh industrial conditions.
Environmental Benefits:
Lead-free, non-toxic, and recyclable, aligning with green initiatives.
Certifications: Complies with UL, CE, UN38.3, and ROHS standards.
