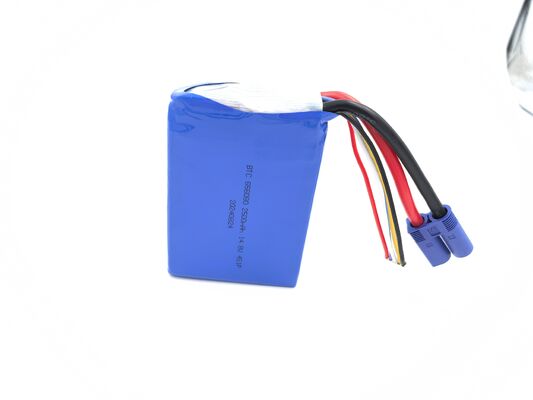

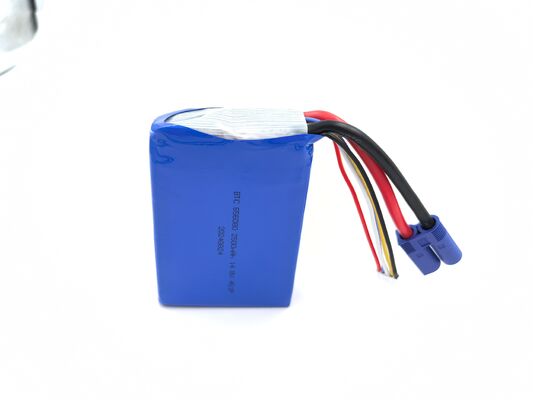

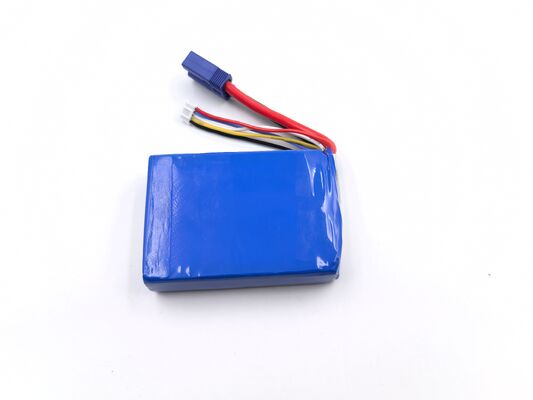

FPV Drone Battery 4S 14.8V 2500mAh 150C - Graphene Lipo Battery for 5 Inch Racing Quadcopter, Lightweight 205g with XT60 Connector
Product Details:
| Place of Origin: | China |
| Model Number: | 656080 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100PCS |
|---|---|
| Packaging Details: | Industrial Pakcage |
| Delivery Time: | 35 working days |
| Payment Terms: | L/C,T/T,Western Union |
|
Detail Information |
|||
| Voltage: | 14.8V | Capacity: | 2500mAh |
|---|---|---|---|
| Energy: | 37.0Wh | Standard Charge Current: | 1C (2.5A) |
| Charge Voltage: | 16.8V | Fast Charge Rate: | 2C Max (5.0A) |
| Weight: | 205 G | Dimensions: | 65 X 60 X 80 Mm |
Product Description
FPV Drone Battery 4S 14.8V 2500mAh 150C - Graphene Lipo Battery for 5 Inch Racing Quadcopter, Lightweight 205g with XT60 Connector
Features
- Ultra-Low Profile Design: With a slim 60mm width and 65mm length, this pack is engineered for streamlined mounting in tight-frame FPV drones, reducing drag and improving aerodynamics.
- Extreme Power-to-Weight Ratio: Exceptionally high discharge rates (75C/150C) deliver massive bursts of power for acrobatic maneuvers and rapid acceleration, while keeping weight minimal for agile flight.
- Robust Construction: Features high-discharge graphene or high-performance LiPo cells with a durable PVC wrap and strain-relieved silicone wires for crash resilience.
- Optimized Balance: Precision-matched cells ensure stable performance and longevity under demanding use.
Specifications
| Nominal Voltage | 14.8V |
| Nominal Capacity | 2500mAh |
| Weight | 205 g |
| Dimensions | 65 x 60 x 80 mm |
| Energy | 37.0Wh |
|
Charge Voltage |
16.8V |
| Standard charge current |
|
| Fast Charge Rate |
2C Max (5.0A) |
| Internal Resistance |
≤3.0 mΩ |
| Working teerature | Charge:5°C to 40°C |
| Discharge:-10°C to 60°C |
Applications
- 5-inch FPV Racing Drones: The standard for competitive racing quads requiring maximum power and minimal weight.
- Freestyle FPV Drones: For pilots performing tricks and acrobatics where instantaneous power delivery is critical.
- High-Speed Long-Range Mini Quads: Lightweight builds where a lower-capacity, high-power pack is ideal for speed-focused flights.
- Aggressive Cinewhoop Drones: For dynamic, fast-paced cinematic filming.
Warnings & Precautions
Charging
- Charger: Use a SMART LiPo balance charger ONLY. Set to LiPo, 4S (14.8V).
- Charge Rate: Do not exceed 1C (2.5A) for regular charging. Use 2C (5A) only if supported by the battery and charger.
- Supervision: NEVER charge unattended. Charge in a fireproof container (LiPo bag) on a non-flammable surface.
- Balance Charge: ALWAYS use the balance connector to ensure all cells charge equally to 4.20V.
- Termination: Stop charging immediately if the battery becomes puffy, hot, emits smoke/smell, or shows any damage.
Discharging
- Voltage Limits: NEVER discharge below 12.0V (3.0V per cell). NEVER charge above 16.8V (4.2V per cell).
- Temperature: Allow battery to cool to ambient temperature before charging. Do not use or charge if cell temperature exceeds 60°C (140°F).
- Inspection: Visually inspect before each use for damage, swelling, or loose wires. DO NOT USE if damaged.
- Short Circuit: Cover main leads with insulating caps when not connected. A short circuit can cause instant fire.
- Environment: Keep dry. Do not puncture, crush, or expose to fire.
Storage
- Storage Voltage: For any storage over 48 hours, discharge/charge to 3.80V - 3.85V per cell (15.2V - 15.4V total).
- Storage Location: Store in a cool, dry place (10-25°C ideal) inside a fireproof bag.
- Transport: For air travel, protect terminals. Batteries under 100Wh (like this 37Wh pack) are typically allowed in carry-on baggage in limited quantities (check airline rules).
