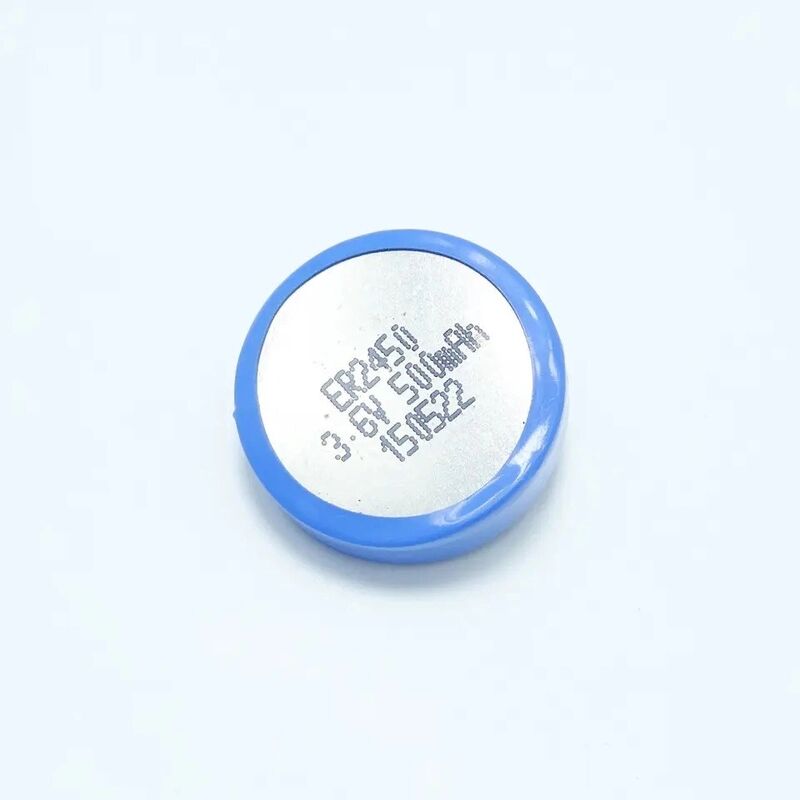

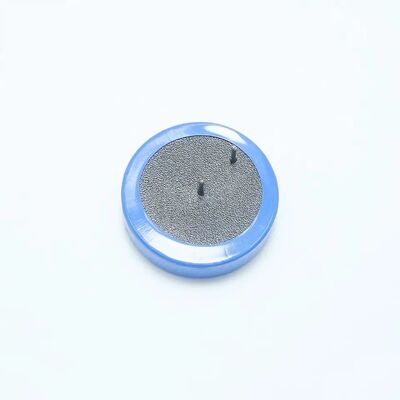

3.6V 500mAh Circular Li Socl2 Battery ER2450 High Energy Type
Product Details:
| Place of Origin: | China |
| Model Number: | ER2450 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Packaging Details: | Industrial Pakcage |
| Delivery Time: | 35 working days |
| Payment Terms: | L/C,T/T,Western Union |
|
Detail Information |
|||
| Rated Capacity: | 500mAh | Voltage: | 3.6V |
|---|---|---|---|
| Size: | 24.5×5.5mm | Operating Teerature: | -55 ℃ To 80 ℃ |
| Long Shelf Life: | ≥10 Year | Weight: | 10g |
| Discharge Cut-off Voltage: | 2.0V | Nominal Discharge Current: | 0.5mA |
| Highlight: | 500mAh Li Socl2 Battery,Circular Li Socl2 Battery,ER2450 Battery 3.6V |
||
Product Description
High energy type 3.6V 500mAh Circular Li-SCOI2 Battery ER2450
Features
- High Energy Density: Offers one of the highest energy densities among primary batteries, ideal for long-life applications.
-
Excellent Shelf Life: Extremely low self-discharge rate (<1% per year) allows for storage lifespans of 10 years or more.
-
Wide Operating Temperature Range: Performs reliably in extreme environments, from -55°C to +85°C (some variants up to +125°C or even +150°C).
-
Stable Voltage Output: Maintains a remarkably stable voltage plateau throughout most of its discharge life (e.g., 90% of capacity).
-
Robust Construction: Hermetically sealed design ensures reliability and leakage prevention.
-
Maintenance-Free: As a primary battery, it requires no charging or maintenance during its service life.
Specification
| Nominal Voltage | 3.6V | |
| Discharge Cut-off Voltage | 2.0V | |
| Nominal Discharge Current | 0.5mA | |
| Nominal Capacity | 500mAh | |
| Max Dimension | φ24.5×5.5mm | |
| Max weight | 10g | |
| Standard Discharge | Discharge to 2.0V 0.5mA | |
| Max. Constant Discharge Current | 10mA | |
| Max. Pulse Current | 20mA | |
| Ambient Teerature Range | -55~ +85°C | |
| Storage Life | ≥10 year | |
| Self-discharge | Yearly self-discharge ≤ 1% | |
Applications
- Automotive Electronics: Tire Pressure Monitoring Systems (TPMS), brake systems, automotive electronics.
-
Smart Metering: Electricity, water, and gas meters (AMR/AMI systems).
-
Industrial Equipment: Smart instruments, industrial sensors, data loggers.
-
Security & Safety Devices: Security alarm systems, smoke detectors, electronic locks.
-
Medical Devices: Portable medical equipment, medical instruments.
-
Communication Devices: GPS trackers, GSM communication systems, RFID tags.
-
Memory Backup: Real-time clocks (RTC), SRAM backup, computer support power.
Warnings & Safety Instructions
Operation
- Do Not Recharge: This is a primary (non-rechargeable) battery. Attempting to charge it can cause heating, leakage, rupture, or fire.
-
Avoid Short Circuits: A short circuit can generate extreme heat and lead to venting, explosion, or fire. Never place loose batteries where terminals can contact metal objects.
-
Current Limits: Do not exceed the manufacturer's specified maximum continuous (8-10mA) and pulse (20mA) currents.
-
Voltage Monitoring: Avoid deep discharge below the recommended cut-off voltage (2.0V).
-
Temperature Limits: Operate within the specified temperature range. Exposure to excessive heat can be dangerous.
Storage & Disposal
- Storage: Store in a cool, dry place (preferably ≤30°C & ≤75% RH).
-
Disposal: Do not dispose of in regular trash. These batteries must be recycled or disposed of as hazardous waste according to local regulations.
Other Prohibitions
- Do Not Incinerate: Incineration may cause explosion.
-
Do Not Disassemble: Disassembly will expose internal chemicals (SOCl₂), which are harmful and corrosive.
-
Do Not Mix: Do not mix with different battery types, brands, chemistries, or old/new batteries.
-
No Heating: Do not use or heat outside the permitted temperature range.
