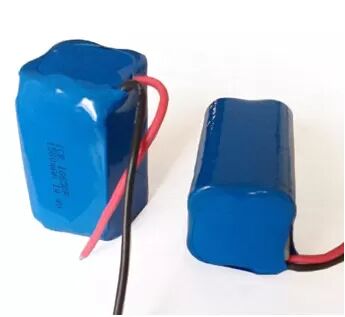

Powerful 1500mAh Li Ion Battery Pack 14.4V Golf Cart Battery Pack
Product Details:
| Place of Origin: | China |
| Certification: | CE UL ISO KS |
| Model Number: | -18650 1500 mAh |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200PCS |
|---|---|
| Payment Terms: | L/C,T/T |
|
Detail Information |
|||
| Voltage: | 14.4V | Capacity: | 1500mAh |
|---|---|---|---|
| Dimension:: | 42.0 X 37.0 X 68.0mm | Weight:: | 362g |
| Standard Charge Current: | 0.2C-0.5C (300mA-750mA) | Max. Continuous Discharge: | ≤22.5A (15C) |
| Internal Resistance: | ≤380 MΩ (Pack) | Cycle Life: | 500 - 1000 Cycles |
| Highlight: | Powerful Li Ion Battery Pack,1500mAh Li Ion Battery Pack,14.4V Golf Cart Battery Pack |
||
Product Description
Powerful 1500mAh Li-ion Battery Packs 14.4V for Golf Cart Battery Pack
Features
- High Power Density: Capable of delivering high discharge currents up to 22.5A continuously and 56.25A pulse, suitable for applications requiring high burst power .
-
Compact Form Factor: The 4S1P configuration utilizing 18650 cells provides a balance of voltage and capacity in a relatively small package (42x37x68mm) .
-
Integrated Protection Circuit Module (PCM): Includes comprehensive protection against overcharge, over-discharge, overcurrent, short circuit, and temperature extremes .
-
Long Cycle Life: Designed to withstand over 500 charge-discharge cycles while maintaining more than 80% of its initial capacity .
-
Wide Operating Temperature Range: Can operate in environments from -20°C to +55°C, making it suitable for various outdoor applications .
Specifications
|
Diameter*Height |
42.0mm x 37.0mm x 68.0mm |
|
Nominal Voltage |
14.4V |
|
Nominal Capacity |
1500mAh |
|
Iedance Resistance |
≤380 mΩ (Pack) |
|
Discharge cut-off voltage |
10.0V (2.5V per cell) |
|
Charge voltage |
16.8V (4.2V per cell) |
|
Standard charge current |
0.2C-0.5C (300mA-750mA) until 16.8V |
|
Maximum Continuous Discharge Current |
22.5A (15C) |
|
Working teerature |
Charge:0-45 degree |
|
Discharge:-20-55 degree |
|
|
Storage teerature |
minus 20 - 45degree |
|
Cycle life |
500 - 1000 cycles |
Applications
- Golf Carts/Trolleys: Providing power for electric golf carts or push trolleys. Note: For larger golf carts, higher capacity packs (e.g., 4S4P) are common .
-
Power Tools: Drills, drivers, saws, and other cordless tools requiring high power .
-
Outdoor Equipment: Gardening tools, portable lighting, and other motorized equipment.
-
Backup Power: Emergency power for small devices or systems.
Warnings & Precautions
Charging
- Use a Li-ion Specific Charger: Always use a charger designed for Li-ion chemistry and configured for this battery's voltage (16.8V) and current limits.
-
Avoid Overcharging: Do not exceed the maximum charge voltage of 16.8V. Overcharging can cause thermal runaway, leading to fire or explosion .
-
Temperature Monitoring: Charge only within the specified temperature range (0°C to +45°C). Charging outside this range is dangerous and can damage the battery .
Discharging
- Avoid Deep Discharge: Stop using the battery before reaching the cut-off voltage (10.0V-12.0V for the pack). Over-discharging can cause irreversible internal damage .
-
Current Limits: Do not exceed the maximum continuous discharge current (22.5A) to prevent excessive heat generation and potential damage .
-
Temperature Management: Avoid discharging outside the recommended temperature range (-20°C to +55°C). Extreme temperatures can degrade performance and safety .
Storage
- Partial Charge Storage: For long-term storage (longer than one month), store the battery at a 30%-50% State of Charge (SOC) in a cool, dry place .
-
Ideal Storage Conditions: The ideal long-term (1 year) storage temperature is between -5°C to +20°C.
