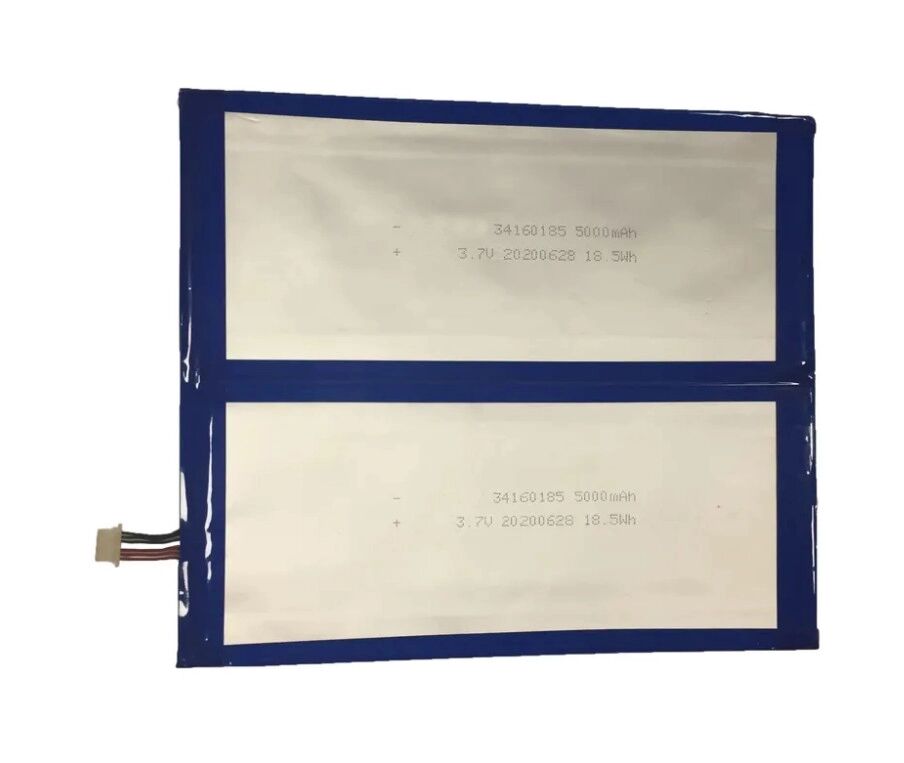

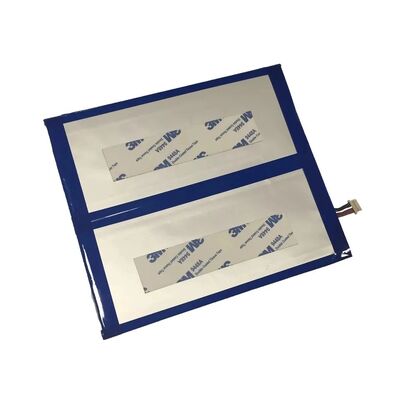

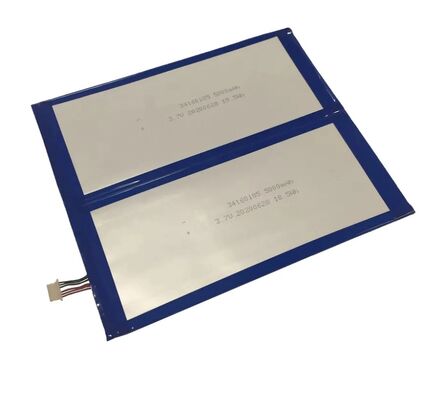

Ultra Thin Lithium Polymer Battery 3.7 V 10000mah Rechargeable Lipo Battery
Product Details:
| Place of Origin: | China |
| Certification: | CB, CE, KC, ROHS, UN38.3 |
| Model Number: | 34160185 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Packaging Details: | Industrial Pakcage |
| Delivery Time: | 35 working days |
| Payment Terms: | L/C,T/T,Western Union |
|
Detail Information |
|||
| Material: | Lithium Polymer,pure Cobalt | Voltage: | 3.7V |
|---|---|---|---|
| Capacity: | 10Ah | Contant Discharge Current: | 1C |
| Peak Discharge Rate:: | 3C | Weight: | 201.5g |
| Size: | (T)34mm*(W)160mm*(H)185mm | Warranty: | 1year |
| Name: | Lithium Polymer Battery 3.7 V 10000mah | ||
| Highlight: | Ultra Thin Lithium Polymer Battery 3.7V,Lithium Polymer Battery 3.7 V 10000mah,10000mah Rechargeable Lipo Battery |
||
Product Description
3.7V 10000mAh rechargeable lipo battery ultra thin lithium battery polymer lithium battery
Features
- Exceptionally High Energy Density: With a capacity of 10,000mAh and a weight of only 201.5g, this battery offers an outstanding energy-to-weight ratio, making it ideal for weight-sensitive applications.
-
Ultra-Thin Prismatic Form Factor: The 34mm thickness and large, flat surface area (160x185mm) make it perfect for integrating into slim devices where traditional cylindrical cells won't fit.
-
High Discharge Capability: Capable of supporting continuous discharge suitable for a wide range of portable electronics and medium-power devices.
-
Flexible Pouch Design: The polymer pouch allows for some customizability in shape and terminal placement compared to rigid metal-cased cells.
-
Low Self-Discharge: Retains its charge for extended periods when not in use.
specification
|
Model Number
|
-30160185-5000mAh
|
|
Nominal Voltage
|
3.7V
|
|
Capacity
|
10000mAh
|
|
Dimensions
|
34 x 160 x 185 mm
(Thickness x Width x Height)
|
|
Weight
|
201.5 g
|
|
Standard Charging Current
|
2A
|
|
Max charging rate
|
5A
|
|
Warranty
|
1 year
|
|
Cycle Life
|
300
|
|
Storage Temperature
|
-20°C to 45°C
|
|
Operating Temperature
|
Charging: 0°C to 45°C
Discharging: -20°C to 60°C
|
|
Internal Impedance
|
≤ 80 mΩ (Fully charged, AC 1kHz)
|
Applicatons
- Portable Power Banks: High-capacity external batteries for charging laptops, tablets, and multiple smartphones.
- Portable Medical Devices: Power for mobile diagnostic equipment, portable monitors, and other healthcare electronics.
- Professional Video & Photography Equipment: On-camera lights, portable display monitors, and gimbal stabilizers.
- DIY Electronics and Prototyping: Custom robots, drones (where the flat form factor is beneficial), and other projects.
- Portable Audio Equipment: High-power Bluetooth speakers and portable sound systems.
Warnings & Precautions
Charging
- Use a dedicated charger. You must use a charger specifically designed for Lithium Polymer (Li-Po) chemistry with the correct voltage (4.2V) and current limits.
- Never charge above the maximum voltage of 4.2V.
- Never charge at currents higher than the specified maximum (1C or 10A).
- Never charge a battery that is below 0°C (32°F) or above 45°C (113°F).
Discharging
- Do not over-discharge. Never discharge the battery below the cut-off voltage of 3.0V.
- Do not exceed the maximum continuous discharge current (10A). Exceeding this limit will cause overheating and can damage the battery.
- Avoid short-circuiting the battery. A short circuit can cause extremely high currents, leading to overheating, fire, or explosion.
Handling & Storage
- Do not disassemble, crush, puncture, shred, or otherwise damage the battery. The pouch can be easily punctured, leading to a severe internal short circuit and thermal runaway.
- Do not expose to extreme heat or fire. Store away from heaters and direct sunlight.
- For long-term storage (longer than one month), store the battery at a 30-50% State of Charge (approx. 3.7V - 3.8V per cell) in a cool, dry place.
