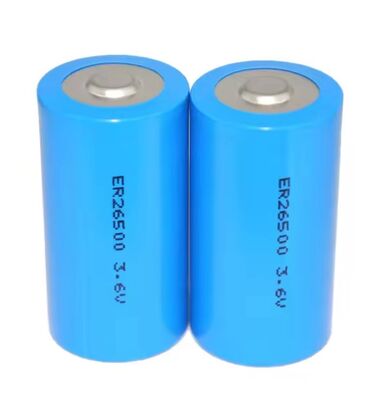

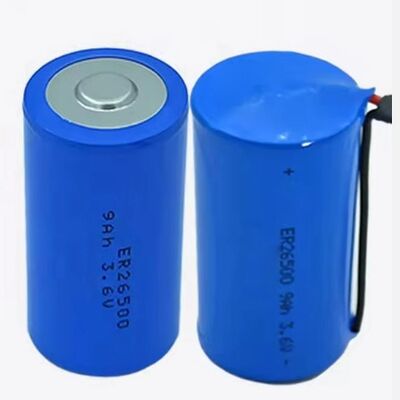

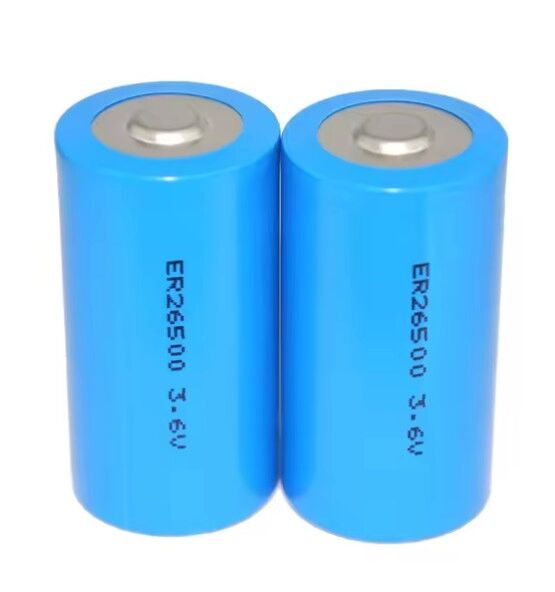

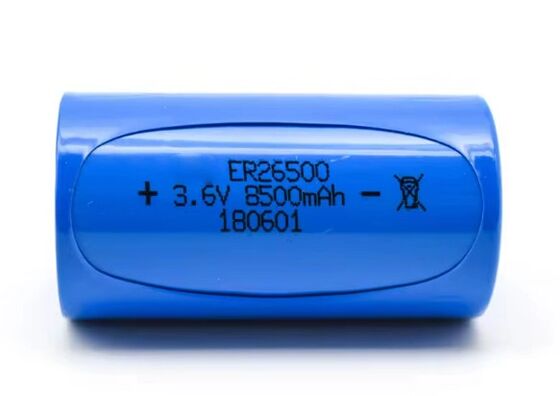

ER26500 9ah Li Socl2 3.6 V Battery 3.6v 8500mah Primary Lithium Battery
Product Details:
| Place of Origin: | China |
| Certification: | UN38.3 MSDS CB CE BIS |
| Model Number: | er26500 3.6v 9ah |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000PCS |
|---|---|
| Packaging Details: | Industrial Pakcage |
| Delivery Time: | 35 working days |
| Payment Terms: | L/C,T/T,Western Union |
|
Detail Information |
|||
| Rated Capacity: | 8500mAh | Nominal Voltage: | 3.6V |
|---|---|---|---|
| Discharge Cut-off Voltage: | 2.0V | Dimension: | 26×50mm |
| Weight: | 53g | Ambient Teerature Range: | -55~ +85°C |
| Storage Life: | ≥10 Year | Self-discharge: | <1% Per Year |
| Highlight: | Li Socl2 3.6 V Battery,Li Socl2 Battery 3.6 V,8500mah Primary Lithium Battery |
||
Product Description
ER26500 3.6v 8500mah 9ah lisocl2 battery lithium battery primary lithium battery
Features
- High Energy Density: Offers one of the highest energy densities among primary batteries, ideal for long-life applications.
-
Excellent Shelf Life: Extremely low self-discharge rate (<1% per year) allows for storage lifespans exceeding 10 years.
-
Wide Operating Temperature Range: Performs reliably in extreme environments, from -55°C to +85°C.
-
Stable Voltage Output: Maintains a relatively stable voltage plateau throughout most of its discharge life.
-
Robust Construction: Features a stainless steel case and a glass-to-metal hermetic seal for enhanced reliability and leakage prevention.
-
Maintenance-Free: As a primary battery, it requires no charging or maintenance during its service life.
-
Environmental Considerations: Does not contain mercury, cadmium, or lead. However, proper disposal is essential.
Specification
| Model | ER26500 | |
| Rated Capacity | 8500mAh | |
| Nominal Voltage(V) | 3.6V | |
| Discharge Cut-off Voltage | 2.0V | |
| Dimension | φ26×50mm | |
| Max weight | 53g | |
| Standard Discharge | Low current applications | |
| Max. Constant Discharge Current | 230mA | |
| Max. Pulse Current | 460mA | |
| Ambient Teerature Range | -55~ +85°C | |
| Storage Life | ≥10 year | |
| Self-discharge | <1% per year | |
Applications
- Smart Metering: Electricity, water, and gas meters (AMR/AMI systems).
-
Industrial & Medical Equipment: Wireless sensors, data loggers, medical devices, memory backup power, and real-time clocks.
-
Security & Safety Devices: Alarm systems, GPS trackers, smoke detectors, and emergency lighting (e.g., escape route lighting).
-
Automotive Electronics: Tire Pressure Monitoring Systems (TPMS).
-
Military and Aerospace: Suitable for various military communication equipment and aerospace applications due to wide temperature range and reliability.
Warnings & Safety Instructions
Operation
- Do Not Recharge: This is a primary (non-rechargeable) battery. Attempting to charge it can cause heating, leakage, rupture, or fire.
-
Avoid Short Circuits: A short circuit can generate extreme heat and lead to venting, explosion, or fire. Never place loose batteries where terminals can contact metal objects.
-
Current Limits: Do not exceed the manufacturer's specified maximum continuous and pulse currents (ER26500 standard version is for low drain use). Using a standard version in a high-drain application can cause voltage delay or failure.
-
Temperature Limits: Operate within the specified temperature range. Exposure to excessive heat (e.g., >85°C) can be dangerous.
Storage & Disposal
- Storage: Store in a cool, dry place (preferably below 20°C, not exceeding 30°C).
-
Disposal: Do not dispose of in regular trash. These batteries must be recycled or disposed of as hazardous waste according to local regulations. Contact a licensed waste handler.
Other Prohibitions
- Do Not Incinerate: Incineration may cause explosion.
-
Do Not Disassemble: Disassembly will expose internal chemicals, which are harmful.
-
Do Not Mix: Do not mix with different battery types, brands, or old/new batteries.
